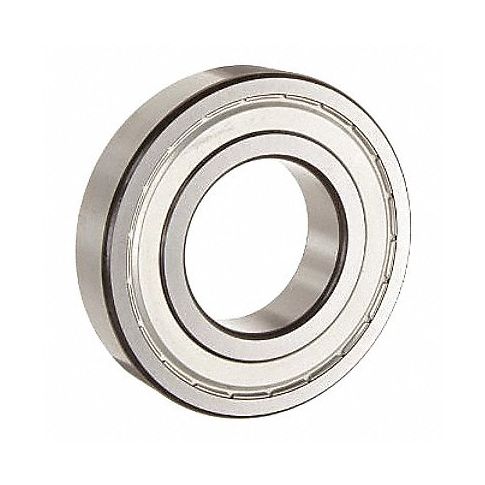

Radial Ball Brg 6317 85mm Bore Alloy Stl MPN:6317 2Z JEM
Radial Ball Brg 6317 85mm Bore Alloy Stl
Upgrade your power transmission system with the high-performing Radial Ball Bearing from SKF. Designed for single-row alignment, this unmounted bearing item is ideal for applications that require strong, reliable performance. With its double shielded design and 85 mm bore diameter, you can count on it to deliver smooth, accurate movement for a wide range of power transmission needs. Improve your machinery's efficiency and productivity with this durable radial ball bearing from SKF.
Top product features:
- Single-row alignment for strong, reliable performance
- Double shielded design for smooth movement and durability
- 85 mm bore diameter for wide range of power transmission needs
Top product applications:
- Transmission systems that require high precision and low friction movement
- Machinery used in industries where reliable performance is critical for operations
- Robotics and automation systems that need smooth, stable motion
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 85 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 180 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 41 mm
- Shield Material Stamped Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 31,500 lb
- Static Load Capacity 21,700 lb
- Max. RPM 5,000 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6317 2Z JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63172ZJEM
- MPN: 6317 2Z JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on February 12, 2025 5:30am UTC
Category: Bearings
