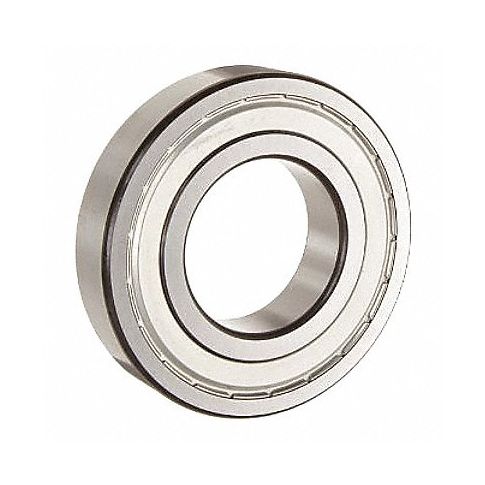

Radial Ball Brg 6316 80mm Bore Alloy Stl MPN:6316 2Z JEM
Radial Ball Brg 6316 80mm Bore Alloy Stl
The SKF Radial Ball Bearing 6316 is a versatile and robust single row bearing designed for high load carrying capacity. It features double shielded seals to provide excellent protection against contamination and extend its working life. The bearing's 80 mm bore diameter and +/-0.007m tolerance make it suitable for various heavy-duty applications, such as machinery, automotive, aerospace, and Power Transmission. By choosing the SKF Radial Ball Bearing 6316, you can experience reduced friction, less wear and tear, and long service life. Invest in this reliable bearing and take your machinery to new heights!
Top product features:
- High load carrying capacity for heavy-duty applications
- Double shielded seals for excellent contamination protection and extended service life
- Suitable for a wide range of applications such as machinery, automotive, aerospace and Power Transmission
Top product applications:
- Machinery and mechanical equipment for heavy load bearing applications
- Automotive and transportation industries for axles and wheels
- Aerospace and aircraft engineering for wing flaps and control systems
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 80 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 170 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 39 mm
- Shield Material Stamped Steel
- ABEC Tolerance 1
- Dynamic Load Capacity 29,200 lb
- Static Load Capacity 19,400 lb
- Max. RPM 5,300 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6316 2Z JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63162ZJEM
- MPN: 6316 2Z JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:00pm UTC
Category: Bearings
