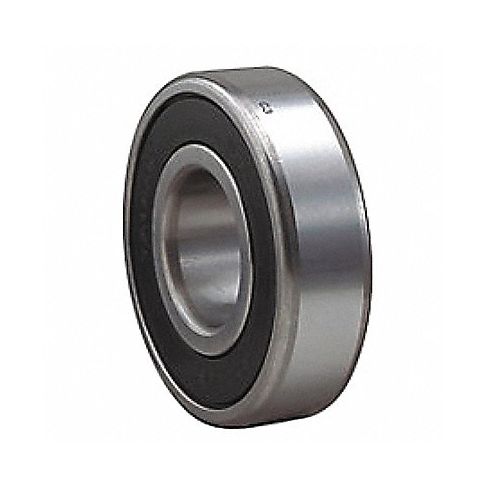

Radial Ball Brg 6316 80mm Bore Alloy Stl MPN:6316 2RS JEM
Introducing the SKF Radial Ball Bearing 6316 80mm Bore Alloy Stl - an essential component for heavy-duty machinery and equipment. This single-row radial ball bearing is specifically designed to provide smooth, reliable performance in high-demand applications. Its double sealed design protects the bearing from dust and debris, while extending its lifespan and minimizing maintenance requirements. The 80mm bore diameter makes it suitable for larger applications where a strong, stable connection is needed. With its superior construction and precision engineering, the SKF Radial Ball Bearing 6316 is an ideal choice for industrial, construction, agricultural, and other demanding industries. Order yours today and experience the difference in performance and reliability!
Top product features:
- Double sealed design reduces maintenance and extends bearing lifespan
- Single-row radial alignment for precision and stability in heavy duty applications
- Bore diameter of 80mm for larger, stable connections
Top product applications:
- Industrial machinery supports heavy loads and provides smooth movement in mechanical systems
- Construction equipment provides durability and reliability under tough conditions
- Agricultural machinery handles harsh environments and maintains precision for optimal performance
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 80 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 170 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 39 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- ABEC Tolerance 1
- Dynamic Load Capacity 29,200 lb
- Static Load Capacity 19,400 lb
- Max. RPM 5,300 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6316 2RS JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63162RSJEM
- MPN: 6316 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
