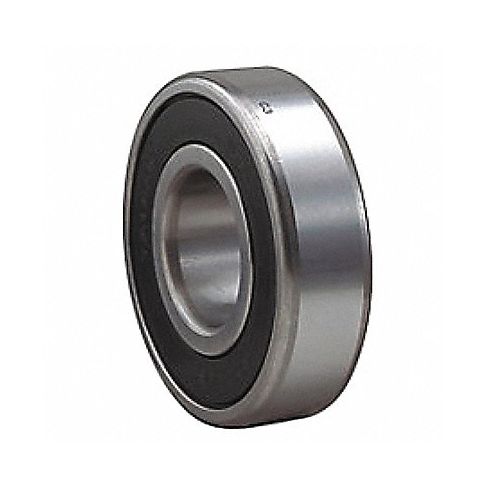

Radial Ball Brg 6314 70mm Bore Alloy Stl MPN:6314 2RS JEM
Radial Ball Brg 6314 70mm Bore Alloy Stl
The Radial Ball Bearing 6314 from Skf is an excellent choice for high-precision machinery and equipment requiring unidirectional load support. Its compact, double-sealed design enhances lubrication retention and ensures efficient operation with minimal downtime. With a 70 mm bore diameter and tight tolerance (+/- 0.007mm), this bearing delivers exceptional accuracy and durability even in high-speed applications. Its robust construction and precision engineering make it ideal for a wide range of industries, including power transmission, manufacturing, and automotive. Whether you need to enhance your machine's performance or minimize maintenance costs, the Radial Ball Bearing 6314 delivers unbeatable quality and value.
Top product features:
- Double sealed design enhances lubrication retention and ensures efficient operation with minimal downtime.
- Tight bore tolerance (+/0.007mm) provides exceptional accuracy and durability even in high-speed applications.
- Compact size and unidirectional load support make it ideal for a wide range of industries and applications, including power transmission and automotive.
Top product applications:
- Industrial machinery that requires high precision and accuracy in its operations, such as CNC machines, printers, and robotic arms.
- Heavy-duty vehicles like trucks, buses, or agricultural equipment where reduced friction is crucial for efficient performance and extended life of the bearings.
- Automotive applications including race cars, motorcycles, or high-performance vehicles where enhanced load support and speed capability are necessary.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 70 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 150 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 35 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- ABEC Tolerance 1
- Dynamic Load Capacity 25,000 lb
- Static Load Capacity 15,300 lb
- Max. RPM 6,300 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6314 2RS JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63142RSJEM
- MPN: 6314 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105068
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 19, 2023 11:00am UTC
Category: Bearings
