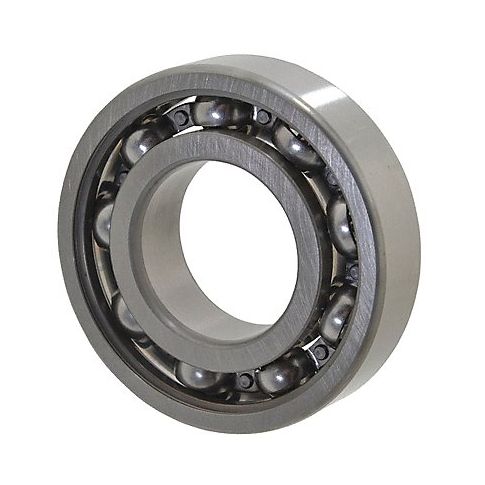

Radial Ball Brg 6309 45mm Bore Alloy Stl MPN:6309 JEM
Look no further than our single-row radial ball bearing for your power transmission needs! This versatile and durable bearing features a 45 mm bore diameter, making it suitable for a wide range of applications. With an open seal/shield type design, you can expect optimal performance in both dry and lightly lubricated environments. The use of high-quality alloy steel materials ensures exceptional strength and longevity, while the single-row alignment design provides precision guidance and reduced friction. Whether you're looking to reduce energy consumption or improve the efficiency of your power transmission system, our radial ball bearing is an ideal solution. Use it in a variety of applications such as agricultural machinery, construction equipment, and industrial transmissions for optimal results. Try one today and experience the difference for yourself!
Top product features:
- Single-row alignment
- High-quality alloy steel materials
- Open seal/shield type design for optimal performance in dry or lightly lubricated environments
Top product applications:
- Agricultural machinery
- Construction equipment
- Industrial transmissions
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Open
- Bore Dia. 45 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 100 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 25 mm
- ABEC Tolerance 1
- Dynamic Load Capacity 12,400 lb
- Static Load Capacity 7,100 lb
- Max. RPM 9,500 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6309 JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 6309JEM
- MPN: 6309 JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:37pm UTC Category: Bearings
