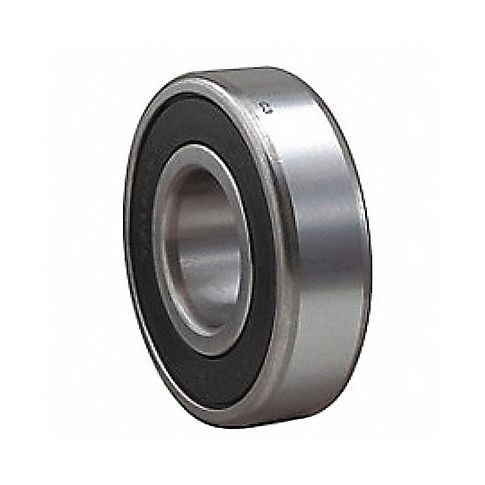

Radial Ball Brg 6309 45mm Bore Alloy Stl MPN:6309 2RSNR JEM
Introducing our high-quality Radial Ball Bearing 6309, ideal for single-row alignment applications requiring precision and longevity. Manufactured by Skf, this bearing is made from durable alloy steel, making it perfect for demanding environments. Its double sealed design ensures a secure fit and protection against contaminants. With a 45mm bore diameter and +/-0.007mm tolerance, the Radial Ball Bearing 6309 is ideal for use in power transmission systems where accuracy is critical. Boasting outstanding benefits such as high load carrying capacity, low noise levels, and reduced maintenance requirements, this bearing is an essential component for a wide range of applications including machinery, automotive, and aerospace industries. Choose our Radial Ball Bearing 6309 and experience superior performance and reliability.
Top product features:
- Alloy Steel Construction Provides increased durability and strength in demanding environments.
- Double Sealed Design Ensures a secure fit and protection against contaminants.
- High Load Carrying Capacity Allows for the bearing to support large loads, making it suitable for heavy-duty applications.
Top product applications:
- Machinery The Radial Ball Bearing 6309 can be used in various machinery applications where precision and durability are required.
- Automotive Industry The high load carrying capacity of this bearing makes it suitable for use in automotive engines or transmissions.
- Aerospace The double sealed design allows for protection against contaminants, making it an ideal choice for use in aerospace applications.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 45 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 100 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 25 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- Retainer Type Snap Ring
- ABEC Tolerance 1
- Dynamic Load Capacity 12,400 lb
- Static Load Capacity 7,100 lb
- Max. RPM 9,500 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6309 2RSNR JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63092RSNRJEM
- MPN: 6309 2RSNR JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105056
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
