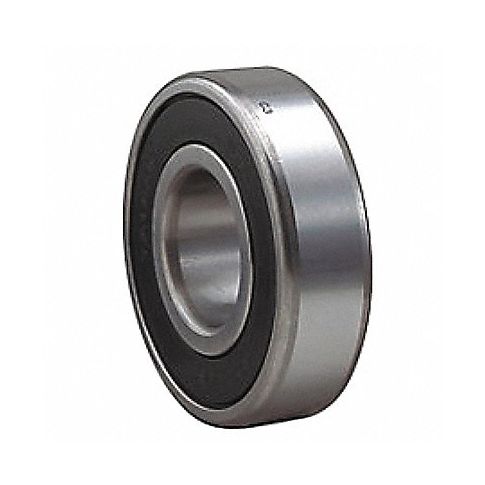

Radial Ball Brg 6309 45mm Bore Alloy Stl MPN:6309 2RS JEM
Radial Ball Brg 6309 45mm Bore Alloy Stl
Experience smoother operations with our premium SKF Radial Ball Bearing, designed for heavy-duty performance. This high-quality bearing features single-row alignment, providing excellent support for your machine, reducing friction and noise while extending the life of the bearings and other moving parts. Ideal for use in various applications like agricultural machinery, mining equipment, industrial motors, and automotive engines, this double-sealed bearing offers reliable performance and long service life, even under harsh conditions. Upgrade your machine with our durable and efficient radial ball bearings and experience the difference today!
Top product features:
- Premium quality: Made by SKF, this radial ball bearing is designed to provide top-notch performance and longevity.
- Double sealed: This bearing comes double-sealed for excellent protection from contamination and extend its service life under tough conditions.
- Single-row alignment: Features single-row alignment that offers reliable support to machines, reducing friction, noise, and extending the lifespan of bearings and moving parts.
Top product applications:
- Agricultural machinery: This high-quality ball bearing can be used in agricultural equipment such as tractors, combine harvesters, and irrigation systems for smoother operations and reduced maintenance costs.
- Mining equipment: Miners can use this double-sealed bearing to reduce friction and noise while increasing the service life of their machinery and keeping it working efficiently under tough conditions.
- Industrial motors: The reliable single-row alignment in this radial ball bearing offers excellent support for industrial motor machines, helping to extend the lifespan of bearings and other moving parts while minimizing friction and noise levels.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 45 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 100 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 25 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- ABEC Tolerance 1
- Dynamic Load Capacity 12,400 lb
- Static Load Capacity 7,100 lb
- Max. RPM 9,500 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6309 2RS JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63092RSJEM
- MPN: 6309 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105052
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 19, 2023 11:00am UTC
Category: Bearings
