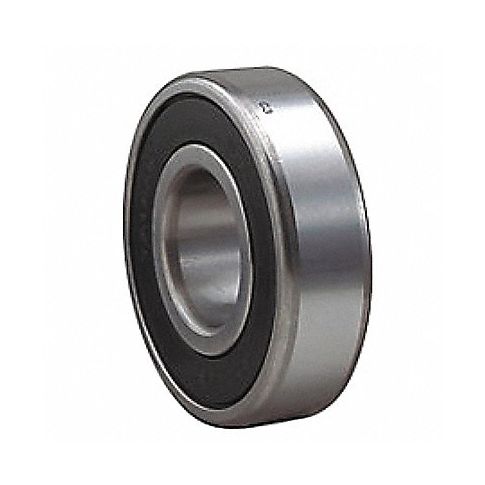

Radial Ball Brg 6302 15mm Bore Alloy Stl MPN:6302 2RS JEM
Radial Ball Brg 6302 15mm Bore Alloy Stl
Introducing the SKF Radial Ball Bearing the ideal solution for enhanced performance in your industrial machinery. This single-row bearing features a robust design and durable materials that offer superior wear resistance and increased efficiency. Designed with Double Sealed technology, these bearings provide excellent sealing capabilities to protect against contamination and extend equipment life. With a 15mm bore diameter and an impressive tolerance of +0/-.007mm, you can trust the precision performance of this bearing in demanding applications like power transmission, construction equipment, and more. Invest in the SKF Radial Ball Bearing for increased productivity and longevity of your machinery.
Top product features:
- Double-sealed technology for excellent sealing capabilities
- Precision performance with a bore tolerance of +0/-.007mm
- Single-row alignment for compact design and lightweight construction
Top product applications:
- Manufacturing industry for automotive, aerospace, and agricultural equipment
- Oil & gas exploration for downhole drilling tools and instruments
- Medical field for surgical implants and orthopedic applications
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 15 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 42 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 13 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- ABEC Tolerance 1
- Dynamic Load Capacity 2,700 lb
- Static Load Capacity 1,200 lb
- Max. RPM 24,000 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6302 2RS JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63022RSJEM
- MPN: 6302 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105048
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 16, 2024 5:30am UTC
Category: Bearings
