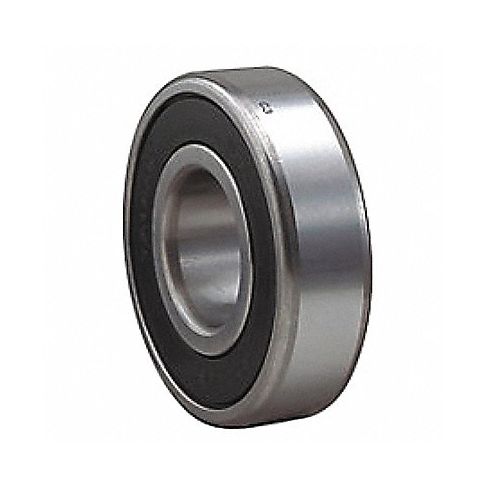

Radial Ball Brg 6301 12mm Bore Alloy Stl MPN:6301 2RS JEM
Radial Ball Brg 6301 12mm Bore Alloy Stl
Introducing the Radial Ball Bearing 6301 by SKF - the ultimate solution for power transmission needs! Designed to handle radial loads and reduce friction in your machinery, this bearing is perfect for use in various industries such as automotive, construction, aerospace, and more. Its double sealed design ensures maximum protection from dust and contaminants, while its single row alignment provides optimal stability. With a 12mm bore diameter and +0/-.007mm bore tolerance, this bearing is compatible with most applications requiring precise fitment. Improve the efficiency and performance of your power transmission system today by choosing the Radial Ball Bearing 6301 from SKF.
Top product features:
- Double Sealed Design for maximum protection from dust and contaminants.
- Single Row Alignment for optimal stability.
- 12mm Bore Diameter for compatibility with most applications requiring precise fitment.
Top product applications:
- Automotive industry used in wheels, transmission gears and steering mechanisms to reduce friction and improve efficiency.
- Construction equipment used in excavators, cranes, and bulldozers as a crucial component in power transmission systems.
- Aerospace industry used in aircraft landing gear and jet engines to ensure smooth operation under extreme pressure and heat.
This radial ball bearing features single-row alignment.
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Sealed
- Bore Dia. 12 mm
- Bore Tolerance +0/-.007mm
- Outside Dia. 37 mm
- Outside Dia. Tolerance +0/-11 micron
- Width 12 mm
- Seal Material Synthetic Rubber
- Shield Material Metal
- ABEC Tolerance 1
- Dynamic Load Capacity 2,300 lb
- Static Load Capacity 900 lb
- Max. RPM 28,000 RPM
- Temp. Range -40 Degrees to 212 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication MT47 Grease
- Industry Number 6301 2RS JEM
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 63012RSJEM
- MPN: 6301 2RS JEM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8482105048
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 19, 2023 11:00am UTC
