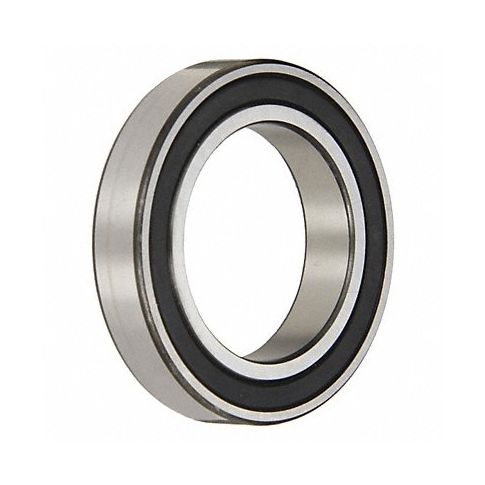

Rad Ball Brg 61901 12mm Bore Alloy Stl MPN:61901-2Z
Rad Ball Brg 61901 is a single-row radial ball bearing with a bore size of 12 mm from Skf. This precision instrument is perfect for use in precision machining and manufacturing applications where high load capacity, reliable performance, and superior efficiency are critical. With double shield seals, this bearing provides excellent protection against dust, dirt, and moisture. It also has a bore tolerance of +0/-08mm which ensures accurate and consistent placement in any machine component. Made with high-quality alloy steel, the Rad Ball Brg 61901 offers superior strength and durability that can handle even the most demanding industrial applications. Whether you're working on aerospace components or precision machinery, this bearing is a reliable and cost-effective solution for your precision machining needs.
Top product features:
- High load capacity: capable of handling heavier loads and stresses in industrial applications
- Excellent precision: perfect for use in precision machining and manufacturing where accuracy is critical
- Durable and long-lasting: made with high-quality alloy steel to withstand even the most demanding industrial environments
Top product applications:
- Precision machining and manufacturing
- Industrial equipment and machines
- Heavy-duty vehicles and industrial automation
Technical Specifications
- Item Radial Ball Bearing
- Unmounted Bearing Item Radial Ball Bearing
- Single Row/Double Row Single Row
- Seal/Shield Type Double Shielded
- Bore Dia. 12 mm
- Bore Tolerance +0/-008mm
- Outside Dia. 24 mm
- Outside Dia. Tolerance +0/-009mm
- Width 6 mm
- Shield Material Steel
- Retainer Type Snap Ring
- ABEC Tolerance 1
- Dynamic Load Capacity 2,250 lb
- Static Load Capacity 980 lb
- Max. Load Axial 130 lb
- Max. RPM 32,000 RPM
- Temp. Range -22 Degrees to 230 Degrees F
- Bearing Material Steel
- Cage Material Pressed Steel
- Lubrication Grease
- Industry Number 61901-2Z
Manufacturer Details
- Manufacturer: SKF
- Condensed Mfg Number: 619012Z
- MPN: 61901-2Z
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Radial and Deep Groove Ball Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ball bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:36pm UTC Category: Bearings
