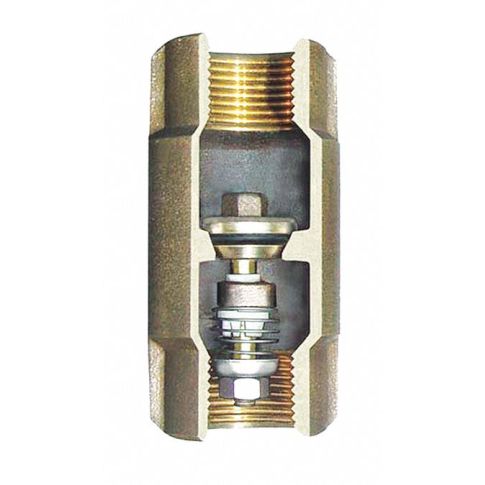

Spring Check Valve Bronze 1-1/4 FNPT MPN:504SB

Technical Specifications

• Item - Check Valves Check Valve
• Flow Design Single
• Mechanism and Body Design Inline Spring
• Body Material - Valves Bronze
• Pipe or Tube Size 1 1/4 in
• Connection Type FNPT x FNPT
• Cracking Pressure 0.5 psi
• Mounting Orientation Horizontal, Vertical
• Seal Material Buna-N
• Max. Temp. - Valves 190 Degrees F
• Max. Water Pressure - Valves 400 psi
• Max. Steam Pressure - Valves Not Rated
• Seat Material Bronze
• Spring Material Stainless Steel
• Application - Valves General Purpose
• Length 2 1/4 in
• Width 2 1/4 in
• Overall Height 3 3/4 in
• Cap to Inlet Center 1 1/2 in
• Hex Size 2 1/4 in
• Standards Certified Lead Free, NSF 61, NSF/ANSI 372

Manufacturer Details

• Manufacturer: Simmons
• Condensed Mfg Number: 504SB
• MPN: 504SB

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Check Valves
• GDS Family Name: Check Valves and Backflow Preventers
• GDS Segment Name: Plumbing
• UNSPSC: 40141622
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Valves
• UNSPSC Commodity ID: 22
• UNSPSC Commodity Name: Inline check valves
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
