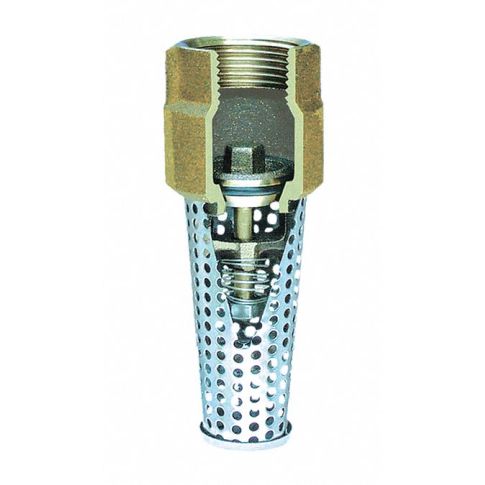

Foot Valve 1 Size NPT 1-3/4 L 1-3/4 W MPN:453SB
Foot Valve 1 Size NPT 1-3/4 L 1-3/4 W
Introducing the Foot Valve - a revolutionary solution for efficient fluid control! Designed to meet the needs of various applications, this versatile valve features a compact size of 1 NPT with dimensions of 1-3/4 L and 1-3/4 W. Its durable construction ensures reliable performance, while the spring mechanism delivers smooth operation. The Foot Valve is ideal for use in pumps and comes with an inline valve body design that provides efficient fluid flow. This product is designed to minimize leaks and reduce maintenance costs, making it a cost-effective solution for all your fluid control needs. Whether you're working in agriculture, industry, or construction, the Foot Valve is the ultimate choice for reliable, efficient fluid control.
Top product features:
- Compact Size allows for versatile applications and easy installation in tight spaces.
- Spring Mechanism delivers smooth operation and durability.
- Inline Valve Body Design provides efficient fluid flow and minimizes leaks for reduced maintenance costs.
Top product applications:
- Agricultural Irrigation maintaining consistent water flow in irrigation systems for crops and livestock.
- Industrial Process Control regulating fluid movement in manufacturing processes, such as coolant management or chemical mixing.
- Municipal Water Distribution controlling water pressure and flow rates in pipelines, ensuring efficient distribution of clean water to homes and businesses.
Buy Simmons item #453SB ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item - Foot Valves Foot Valve
- Flow Design Single
- Design Spring
- Application - Valves Pumps
- Valve Body Design Inline
- Body Material - Valves Bronze
- Strainer Material Stainless Steel
- Pipe or Tube Size - Valves 1 in
- Connection Type - Valves FNPT x FNPT
- Max. Steam Pressure - Valves 400 psi WSP
- Max. Water Pressure - Valves 400 psi
- Cracking Pressure - Valves 0.5 psi
- Max. Temp. - Valves 190 Degrees F
- Mounting Orientation - Valves Horizontal, Vertical
- Seat Material - Valves Bronze
- Spring Material Stainless Steel
- Seal Material - Valves Buna-N
- Length 1 3/4 in
- Width 1 3/4 in
- Overall Height 4 3/4 in
- Cap to Inlet Center 1 1/2 in
- Standards NSF 372, 61 Certified
Manufacturer Details
- Manufacturer: Simmons
- Condensed Mfg Number: 453SB
- MPN: 453SB
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481301090
- GDS Category Name: Foot Valves
- GDS Family Name: Check Valves and Backflow Preventers
- GDS Segment Name: Plumbing
- UNSPSC: 40141622
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 22
- UNSPSC Commodity Name: Inline check valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Check Valves and Backflow Preventers
