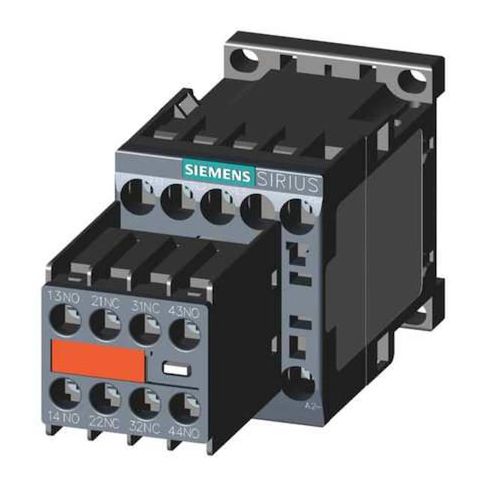

IEC Magnetic Contactor, 2NC/2NO, 24V DC, 3 P, Non-Reversing, Screw MPN:3RT20171BB443MA0
Out Of Stock
The Siemens IEC Magnetic Contactor is a reliable and efficient solution for a wide range of industrial applications. Designed for operation within IEC standards, this 3-pole, non-reversing contactor is ideal for use in control circuits, motor control, and safety applications. Its 24V DC coil and four auxiliary contacts (2 NO / 2 NC) provide flexibility and reliability, while its screw terminals and DIN Rail or surface mounting options make installation easy. Suitable for use in harsh environments, this contactor offers a high level of mechanical durability and meets international safety standards, making it a trusted choice for industries including manufacturing, oil and gas, and food processing.
Top product features:
- The Siemens IEC Magnetic Contactor provides a 3-pole, non-reversing operation.
- It is configured with four auxiliary contacts (2 NO / 2 NC) for added functionality.
- The device has screw terminals for wiring, allowing for easy installation.
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Automated Machinery
The Siemens IEC Magnetic Contactor is rated for operation within IEC standards specifications. It is a 3-pole, non-reversing unit with a 24 V DC coil, configured with four auxiliary contacts (2 NO / 2 NC) and screw terminals for wiring. The device is part of the SIRIUS 3RT Safety Contactors series (Frame B, Frame Size S00) and includes an auxiliary contact
- enclosure type and IP rating are as specified.
- Action: Non-Reversing
- - Poles: 3
- - Coil Voltage: 24 V DC
- - Auxiliary Contacts: 4 (2 NO / 2 NC)
- - Main Contacts: 3 Normally Open
- - Termination: Screw
- - Enclosure / IP Rating: enclosure type and IP rating are as specified
- no implied safety guarantee beyond compliance with standards
- - Mounting Style: DIN Rail, Surface
- - Series / Frame Size: SIRIUS 3RT Safety Contactors
- Frame B
- Frame Size S00
- - Maximum Voltage Rating: rated for operation up to 690V AC within specified conditions
- - Full Load Amps: Inductive 12 A
- Resistive 22 A
- - HP Ratings (selected): 1/2 hp @ 120V
- 2 hp @ 230V
- 2 hp @ 240V
- 3 hp @ 208V (3-phase)
- 3 hp @ 240V
- 7 1/2 hp @ 480V
- 10 hp @ 575V
- - IP Rating / Standards: IP20
- REACH Art 33, WEEE (2012/19/EU)
- - Mechanical Durability: 30,000,000 cycles
- - Operating Temperature: -13 to 140 Degrees F
- - Response Time: AC/DC operation delays provided (ranges vary by mode)
- - Maximum Operating Watts: 6 kW (400V, AC-3)
- 13 kW (400V, AC-1)
- - Note: Inductive Full Load Amps, HP Ratings, Standards, Durability, Temperature Range, Response Time, Operating Watts — all these specifications describe the product's rated capabilities but do not constitute guarantees of performance under all conditions.
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.75
