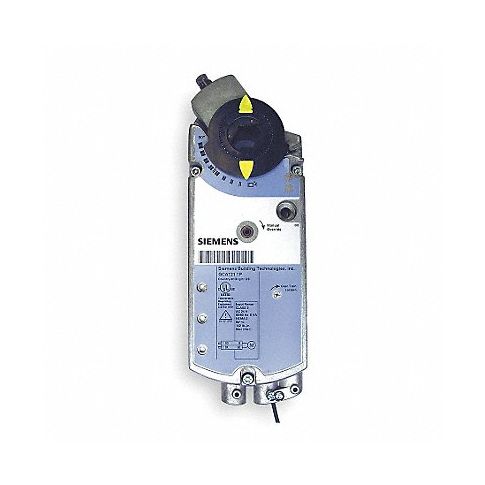

Electric Actuator 160 in-lb. Modulating MPN:GCA161.1P
The Siemens Open Air spring-return rotary electronic damper actuator is designed for modulating control of building HVAC dampers in 2-position and 3-position systems. This electric actuator features a direct mount design, self-centering shaft type, and a 160 in-lb torque rating, making it suitable for a wide range of applications. Its spring return mechanism ensures reliable operation while minimizing energy consumption. The Open Air actuator improves indoor air quality by facilitating proper ventilation and reducing the need for manual adjustments, resulting in optimal HVAC performance and reduced maintenance costs. Its compact design allows easy installation and integration into new or existing systems, making it a versatile solution for commercial, residential, and industrial buildings.
Top product features:
- Direct mount design for easy installation and integration into new or existing systems
- Spring return mechanism ensures reliable operation while minimizing energy consumption
- Compact design enables improved indoor air quality by facilitating proper ventilation
Top product applications:
- Optimizing ventilation in commercial and residential buildings
- Modulating control of HVAC dampers for temperature and airflow regulation
- Facilitating proper indoor air quality management and reducing maintenance costs
Technical Specifications
- Item Electric Actuator
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type Self-Centering
- Torque 160 in-lb
- Stroke Deg. 90
- Height 11 13/16 in
- Width 3 15/16 in
- Depth 2 11/16 in
- Electrical Connections 3 ft 18 AWG Lead
- Signal Type Modulating
- Motor Direction CW or CCW
- Ambient Temp. Range -25 Degrees to 130 Degrees F
- Power Consumption 3VA Holding, 8VA Running
- Timing 90 sec
- Voltage 24V AC/DC
- For Use With Valves and Dampers
- Replaces Honeywell Motors No. Modelo MS7520A2007
- Includes Mounting Bracket Screws and Hex Key
Manufacturer Details
- Manufacturer: Siemens
- Condensed Mfg Number: GCA1611P
- MPN: GCA161.1P
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501104040
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Electronic actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
