2 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:SRF-20R
SKU
226-CXO-44A593

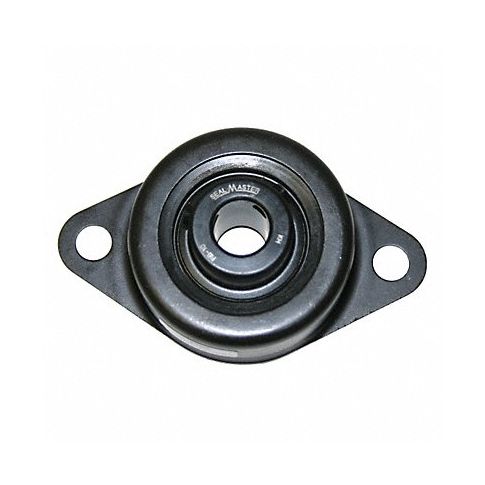

2 Bolt Flng Brg Radial Ball 1 1/4in Bore
The 2 bolt flanged bearing is a reliable choice for heavy duty applications requiring smooth rotational movement and ability to handle radial load. This ball bearing boasts a bore size of 1-1/4 inches, making it suitable for use with shafts of similar diameter. Constructed from sturdy chrome steel, this precision component exhibits durability while its double flanged housing ensures proper alignment during operation - preventing any loss in efficiency caused by shifting or tilting.
✓ Buy Sealmaster item #SRF-20R and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Pressed Steel
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 3/8 in
- Series SRF
- Bolt Size 7/16 in
- Overall Height 3 1/2 in
- Overall Width 1 21/32 in
- Overall Length 5 3/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 600 lb
- Static Load Capacity 360 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 5 3/8 in
- Dimension B 4 3/8 in
- Dimension D 1 1/4 in
- Dimension E 1 5/8 in
- Dimension G 1 21/32 in
- Dimension H 1 1/16 in
- Dimension J 3 1/2 in
- Dimension M 3 1/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SRF20R
- MPN: SRF-20R
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B008FDDBSM
Product info last updated on January 24, 2024 5:49pm UTC Category: Bearings
