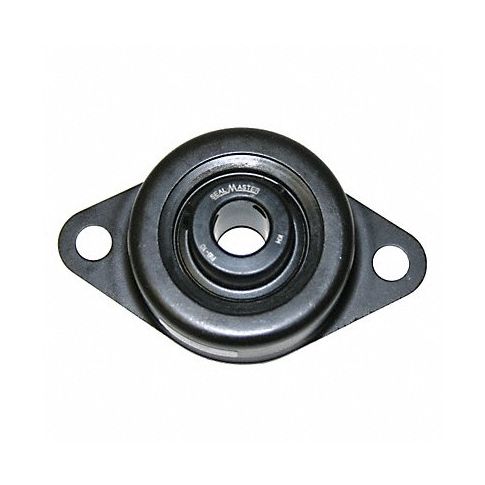

2 Bolt Flange Brg Radial Ball 3/4in Bore MPN:SRF-12
The 2 bolt flange brg radial ball bearing offers exceptional performance, reducing friction and wear ensuring smooth operation promoting efficiency in power transmission applications. Offering versatility, cost-effective and high-performance while offering consistency of product quality making it perfect for industries such as aerospace, automotive and industrial machinery requiring precise secure rotation between rotating shafts. Additionally, its corrosion-resistant construction ensures durability while simplicity in design simplifies installation enhancing cost savings on labor or tools. Ideal for power transmission applications promoting consistent quality, durability, and precision, the 2 bolt flange brg radial ball bearing offers a solution to varied industries needing precision rotational control of shafts.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 3/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Pressed Steel
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 5/8 in
- Series SRF
- Bolt Size 3/8 in
- Overall Height 2 45/64 in
- Overall Width 1 3/8 in
- Overall Length 4 1/2 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 400 lb
- Static Load Capacity 240 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 1/2 in
- Dimension B 3 5/8 in
- Dimension D 1 1/16 in
- Dimension E 1 9/32 in
- Dimension G 1 13/32 in
- Dimension H 7/8 in
- Dimension J 2 45/64 in
- Dimension M 2 41/64 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SRF12
- MPN: SRF-12
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
