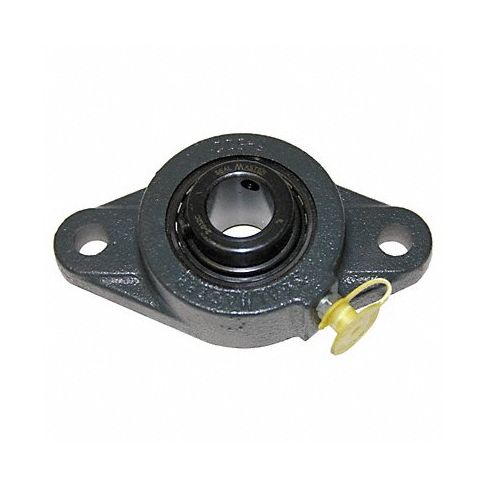

2 Bolt Flng Brg Radial Ball 2in Bore MPN:SFT-32

Technical Specifications

• Item 2-Bolt Flange Bearing
• Mounted Bearing Item 2-Bolt Flange Bearing
• Bearing Insert Type Ball
• Bore Dia. 2 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 7 1/4 in
• Series SFT
• Bolt Size 5/8 in
• Overall Height 5 1/4 in
• Overall Width 2 5/16 in
• Overall Length 8 1/2 in
• Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
• Dynamic Load Capacity 9,752 lb
• Static Load Capacity 6,601 lb
• Temp. Range -20 Degrees to 220 Degrees F
• Finish Black Oxide
• Dimension A 8 1/2 in
• Dimension B 7 1/4 in
• Dimension C 13/16 in
• Dimension D 1 3/4 in
• Dimension E 2 5/16 in
• Dimension F 21/32 in
• Dimension G 13/16 in
• Dimension H 4 1/4 in
• Dimension J 5 1/4 in
• Dimension L 2 23/32 in
• Dimension M 1 5/16 in
• Dimension N 7/8 in

Manufacturer Details

• Manufacturer: Sealmaster
• Condensed Mfg Number: SFT32
• MPN: SFT-32

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Flanged bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
