2 Bolt Flng Brg Radial 1 15/16in Bore MPN:SFT-31
SKU
226-CXO-44A570

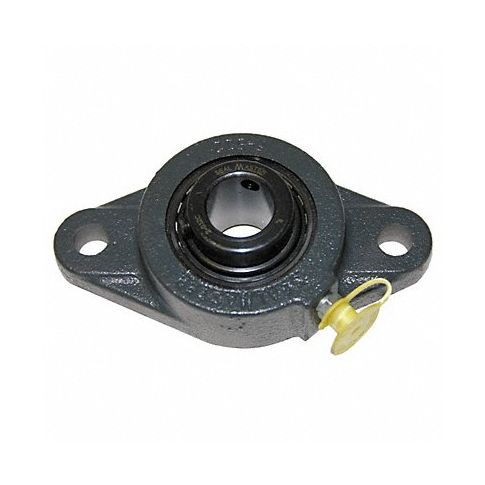

2 Bolt Flng Brg Radial 1 15/16in Bore
This heavy duty flange bolt assembly features an innovative radial design that offers increased holding power for applications where high pressure and torque loads are encountered. Its premium steel construction ensures longevity and reliability even under harsh conditions, while the durable black oxide finish provides protection against corrosion and wear. With a wide range of sizes available to meet your specific requirements, this bolt flange is the ideal choice for industries such as construction, mining, or industrial equipment manufacturing where robust fastening solutions are essential.
✓ Buy Sealmaster item #SFT-31 and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 15/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 6 3/16 in
- Series SFT
- Bolt Size 9/16 in
- Overall Height 4 9/16 in
- Overall Width 2 5/32 in
- Overall Length 7 7/16 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 7,889 lb
- Static Load Capacity 5,216 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 7 7/16 in
- Dimension B 6 3/16 in
- Dimension C 9/16 in
- Dimension D 1 9/16 in
- Dimension E 2 5/32 in
- Dimension F 19/32 in
- Dimension G 9/16 in
- Dimension H 4 in
- Dimension J 4 9/16 in
- Dimension L 2 15/32 in
- Dimension M 1 9/32 in
- Dimension N 3/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SFT31
- MPN: SFT-31
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
