2 Bolt Flng Brg Radial Ball 1 5/8in Bore MPN:SFT-26
SKU
226-CXO-44A565

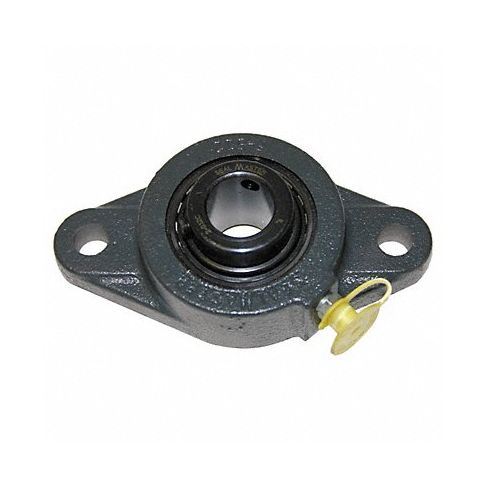

2 Bolt Flng Brg Radial Ball 1 5/8in Bore
The two-bolt flange radial ball bearing comes with an inner diameter of 1.570in and an outer diameter of 3.437 inch thus catering to various applications seeking to reduce friction while providing stability while rotating. It's suitable for use in automotive, agricultural, and aerospace industries, providing the ability to handle heavy loads where it promotes smooth movement, quality control thus enhancing productivity and durability thus prioritizing reliable performance.
Get Sealmaster item #SFT-26 from our selection of Hardware Accessories while supporting Veterans 🎖.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 5/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 27/32 in
- Series SFT
- Bolt Size 9/16 in
- Overall Height 4 3/8 in
- Overall Width 2 3/64 in
- Overall Length 7 1/16 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 7,901 lb
- Static Load Capacity 5,139 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 7 1/16 in
- Dimension B 5 27/32 in
- Dimension C 9/16 in
- Dimension D 1 9/16 in
- Dimension E 2 3/64 in
- Dimension F 19/32 in
- Dimension G 9/16 in
- Dimension H 3 7/8 in
- Dimension J 4 3/8 in
- Dimension L 2 19/64 in
- Dimension M 1 3/16 in
- Dimension N 3/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SFT26
- MPN: SFT-26
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
