2 Bolt Flng Brg Radial Ball 1 1/2in Bore MPN:SFT-24
SKU
226-CXO-44A563

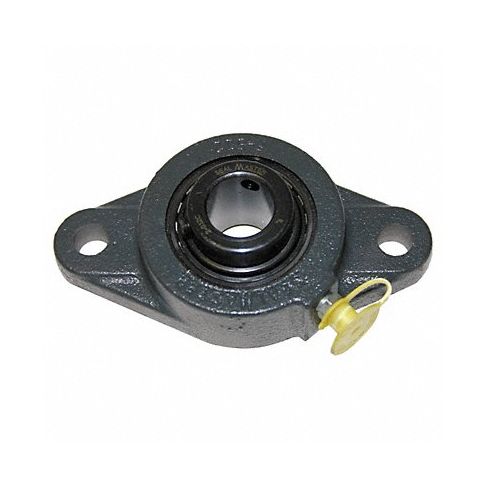

2 Bolt Flng Brg Radial Ball 1 1/2in Bore
Introducing Sealmaster's powerful and durable 2 Bolt Flange Bearing with a 1 1/2 inch bore diameter, perfect for heavy-duty industrial applications requiring high load capacity and stability. With its ball insert type and set screw locking type, this bearing ensures shock and vibration resistance, making it ideal for use in construction equipment, machinery, and other demanding industries. Show your support for our ♻ Socially Responsible Veteran-Owned Business by purchasing Sealmaster item #SFT-24 today!
Top product features:
- Industrial-grade bearing built for heavy-duty use in demanding applications.
- Ball insert type provides shock and vibration resistance.
- Set screw locking type ensures a secure fit and long-lasting performance.
Top product applications:
- Heavy-duty machinery and equipment that requires high load capacity.
- Construction vehicles and earthmoving machines.
- Manufacturing plants and industrial factories where precision and stability are required.
Buy Sealmaster item #SFT-24 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 21/32 in
- Series SFT
- Bolt Size 1/2 in
- Overall Height 4 1/8 in
- Overall Width 2 1/64 in
- Overall Length 6 3/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 7,340 lb
- Static Load Capacity 4,467 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 6 3/4 in
- Dimension B 5 21/32 in
- Dimension C 9/16 in
- Dimension D 1 1/2 in
- Dimension E 2 1/64 in
- Dimension F 17/32 in
- Dimension G 9/16 in
- Dimension H 3 1/2 in
- Dimension J 4 1/8 in
- Dimension L 2 1/16 in
- Dimension M 1 3/16 in
- Dimension N 3/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SFT24
- MPN: SFT-24
