4 Bolt Flng Brg Radial Ball 2 7/8in Bore MPN:SF-46
SKU
226-CXO-44A545

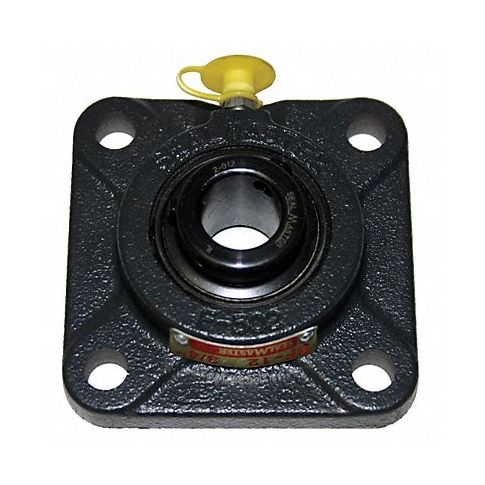

4 Bolt Flng Brg Radial Ball 2 7/8in Bore
The four bolt flange radial ball bearing is ideal for heavy-duty applications such as agriculture, construction or mining equipment, offering high load capacity with excellent precision. Its main features include a radial load rating of 235 K and axial load rating of 940 K per set of bearings that ensure maximum efficiency even under demanding conditions. Moreover, the product comes in different sizes to cater for various shaft diameters from 5/8 -1-7/8 and a sturdy material composition making it durable for extended usage; thereby, making this product a preferred choice in industries that require high performance level bearings.
Buy Sealmaster item #SF-46 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 7/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 6 in
- Series SF
- Bolt Size 3/4 in
- Overall Height 7 3/4 in
- Overall Width 3 3/16 in
- Overall Length 7 3/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 14,839 lb
- Static Load Capacity 11,224 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 7 3/4 in
- Dimension B 6 in
- Dimension C 1 in
- Dimension D 2 3/8 in
- Dimension E 3 3/16 in
- Dimension F 25/32 in
- Dimension G 13/16 in
- Dimension H 3 3/16 in
- Dimension J 6 1/2 in
- Dimension L 3 41/64 in
- Dimension M 1 3/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SF46
- MPN: SF-46
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
Category: Bearings
