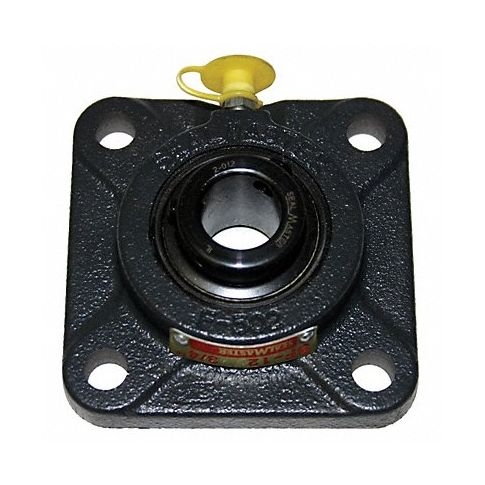

4 Bolt Flng Brg Radial Ball 1 1/4in Bore MPN:SF-20
The 4 bolt flanged bearing is designed with a radial ball design providing robust performance in axial loading applications while minimizing friction and reducing wear for prolonged service life. Its solid steel construction ensures durability and high-load capacity, making it suitable for numerous industrial machines or equipment requiring sturdy and reliable support. Ideal for use in various industries such as agriculture, food processing or textile machinery where load-carrying capacities are critical for performance efficiency, this versatile bearing offers excellent dimensional stability for precise positioning in demanding operations. With an ample 1-1/4 inch bore diameter for easy mounting on shafts or pads, this four bolt flange ball bearing provides convenient and reliable solutions for both OEMs and maintenance professionals alike.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 5/8 in
- Series SF
- Bolt Size 1/2 in
- Overall Height 4 5/8 in
- Overall Width 1 3/4 in
- Overall Length 4 5/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 5,782 lb
- Static Load Capacity 3,493 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 5/8 in
- Dimension B 3 5/8 in
- Dimension C 9/16 in
- Dimension D 1 11/32 in
- Dimension E 1 3/4 in
- Dimension F 17/32 in
- Dimension G 13/32 in
- Dimension H 1 3/4 in
- Dimension J 3 23/32 in
- Dimension L 1 55/64 in
- Dimension M 1 in
- Dimension N 11/16 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SF20
- MPN: SF-20
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
