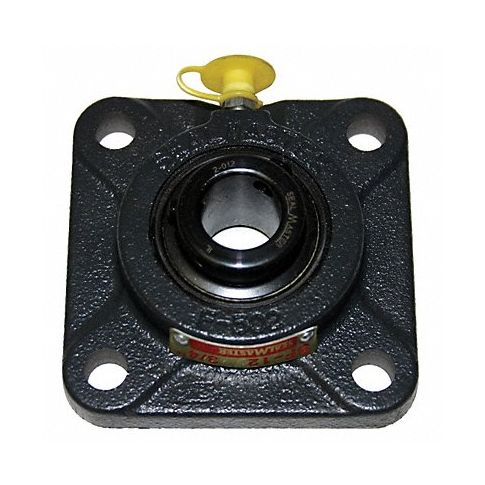

4 Bolt Flng Brg Radial Ball 1 1/8in Bore MPN:SF-18
SKU
226-CXO-44A520
4 Bolt Flng Brg Radial Ball 1 1/8in Bore
This bolt flanging bearing, with a radial ball size of 1-1/8 inches and bore dimensions, provides smooth operation, easy installation and versatility for multiple applications across various industries such as agriculture or construction machinery. The product ensures high load capacities in radial ball bearings offer excellent resistance to shock or impact loading while retaining their bearing characteristics due to efficient heat dissipation resulting from its robust design. Thus, the radial ball bearing plays a significant role within different fields that demand reliable, durable components capable of supporting heavy-duty tasks with precision and smoothness required.
Buy Sealmaster item #SF-18 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 1/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 1/4 in
- Series SF
- Bolt Size 7/16 in
- Overall Height 4 1/4 in
- Overall Width 1 9/16 in
- Overall Length 4 1/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 4,381 lb
- Static Load Capacity 2,567 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 1/4 in
- Dimension B 3 1/4 in
- Dimension C 17/32 in
- Dimension D 1 11/64 in
- Dimension E 1 9/16 in
- Dimension F 15/32 in
- Dimension G 25/64 in
- Dimension H 1 9/16 in
- Dimension J 3 7/32 in
- Dimension L 1 19/32 in
- Dimension M 7/8 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: SF18
- MPN: SF-18
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
