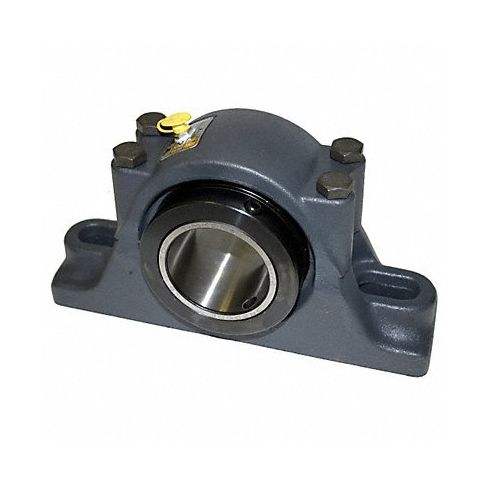

Pillow Block Brg 1 3/8 in Bore Cast Iron MPN:RPB 106-2
The cast iron pillow block bearing has a one-piece structure with machined rings and housing providing high strength and rigidity while the self-lubricating properties minimize friction for smooth and quiet operation. With an inner ring groove and an outer oil hole, it is designed to work with various shaft materials and lubricants for prolonged performance under heavy loads. Its 1 3/8 inch bore accommodates a wide range of applications, making it suitable for use in industrial machinery such as conveyors, textile machines, mixers, presses, or paper machinery where space is limited and robustness is essential. Due to its cost-effective design and versatility, this pillow block bearing is an excellent choice for equipment repair, OEM manufacturing, or general purpose use in various industries.
Technical Specifications
- Item Pillow Block Split Base Bearing
- Mounted Bearing Item Pillow Block Split Base Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 1 3/8 in
- Bolt Hole Center-to-Center 5 5/8 in
- Mounting Surface to Shaft Center 1 7/8 in
- Bearing Housing Material Type Cast Iron
- Shaft Locking Type Set Screw
- Bearing Insert Material 52100 Chrome Steel
- Series RPB
- Number of Bolts 2
- Bolt Size 1/2 in
- Overall Height 3 13/16 in
- Overall Width 3 in
- Overall Length 7 1/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 4,760 lb
- Static Load Capacity 2,080 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RPB1062
- MPN: RPB 106-2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Pillow Block Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171511
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 11
- UNSPSC Commodity Name: Pillow block bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
