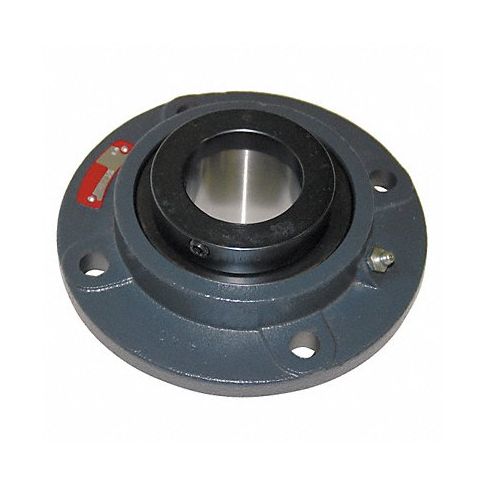

4 Bolt Flng Brg Tapered Roller 5in Bore MPN:RFP 500
The Sealmaster 4-bolt flange tapered roller bearing is designed for heavy-duty applications in various industries such as agriculture machinery, mining equipment, and construction machinery. The robust construction from high-quality alloy steel ensures maximum strength and durability while the secure mounting via the 4-bolt flange design minimizes slippage and provides stability during operation. This bearing comes with a bore size of 5 inches which offers improved load carrying capacity, making it ideal for high load-carrying applications. The tapered roller insert type ensures low friction and minimal wear, promoting efficient power transmission. Additionally, the set screw shaft locking feature provides extra security to prevent loosening during operation. Purchase Sealmaster's 4-bolt flange tapered roller bearing and experience reliable and long-lasting performance for your heavy-duty equipment.
Top product features:
- Robust construction from high-quality alloy steel
- Secure mounting via 4-bolt flange design
- Tapered roller insert type ensures low friction and minimal wear
Top product applications:
- Agriculture machinery that requires high-load bearing capacity
- Mining equipment that operates in harsh and demanding environments
- Construction equipment that needs secure mounting and low friction operation
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 5 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 12 3/4 in
- Series RFP
- Bolt Size 7/8 in
- Overall Height 14 3/4 in
- Overall Width 7 1/4 in
- Overall Length 14 3/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 35,520 lb
- Static Load Capacity 16,000 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 7 1/4 in
- Dimension B 14 3/4 in
- Dimension BC 12 3/4 in
- Dimension C 5 3/8 in
- Dimension D 11 in
- Dimension E 2 7/8 in
- Dimension F 2 31/32 in
- Dimension G 3 5/16 in
- Dimension H 1 1/4 in
- Dimension J 12 3/4 in
- Dimension L 7 13/32 in
- Dimension N 2 7/8 in
- Dimension P 11 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFP500
- MPN: RFP 500
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
