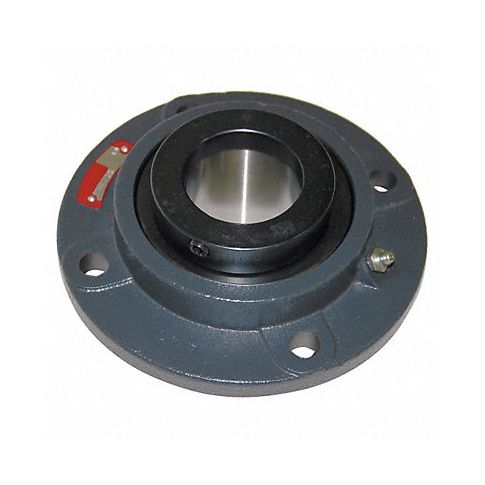

4 Bolt Flng Brg Tapered Roller 4in Bore MPN:RFP 400

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Tapered Roller
• Bore Dia. 4 in
• Shaft Locking Type Set Screw
• Bearing Housing Material Type Cast Iron
• Bearing Insert Material 52100 Chrome Steel
• Bolt Hole Center-to-Center 9 3/8 in
• Series RFP
• Bolt Size 3/4 in
• Overall Height 10 7/8 in
• Overall Width 6 1/4 in
• Overall Length 10 7/8 in
• Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
• Dynamic Load Capacity 20,980 lb
• Static Load Capacity 9,800 lb
• Temp. Range -20 Degrees to 220 Degrees F
• Finish Black Oxide
• Dimension A 6 1/4 in
• Dimension B 10 7/8 in
• Dimension BC 9 3/8 in
• Dimension C 4 3/8 in
• Dimension D 8 1/8 in
• Dimension E 2 7/16 in
• Dimension F 2 11/16 in
• Dimension G 6 in
• Dimension H 3/32 in
• Dimension J 9 25/64 in
• Dimension L 5 15/16 in
• Dimension N 2 7/16 in
• Dimension P 8 1/8 in

Manufacturer Details

• Manufacturer: Sealmaster
• Condensed Mfg Number: RFP400
• MPN: RFP 400

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Flanged bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
