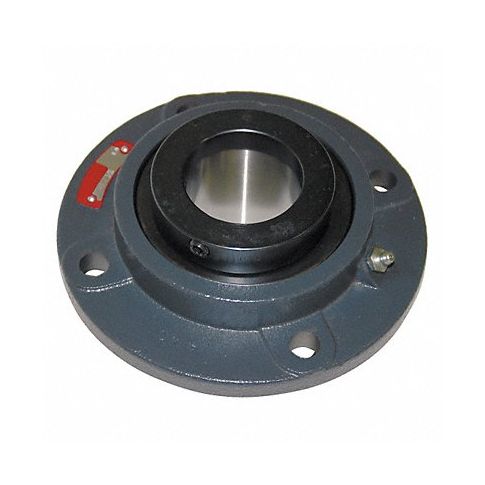

4 Bolt Flng Brg Tapr Roll 3 15/16in Bore MPN:RFP 315
4 Bolt Flng Brg Tapr Roll 3 15/16in Bore
Sealmaster's 4-bolt flange bearing is designed to deliver exceptional performance and durability in heavy duty applications. This robust bearing features tapered roller insert technology for superior wear resistance and longevity. The 4-bolt flange design allows for easy installation and removal, while the bore diameter of 3 15/16 inches ensures a tight fit with shafts and housings. The bearing's set screw shaft locking type provides a secure mounting solution for consistent performance in applications such as conveyors, gearboxes, and machinery. With its versatile design and enhanced capabilities, Sealmaster's 4-bolt flange bearing is the ideal choice for industrial settings that demand reliability and precision.
Top product features:
- Tapered roller insert technology for superior wear resistance and longevity
- 4-bolt flange design for easy installation and removal
- Bore diameter of 3 15/16 inches for a tight fit with shafts and housings
Top product applications:
- Conveyor systems for the transfer and positioning of material in industrial settings
- Gearboxes for power transmission and rotational motion in machinery
- Machine tools for cutting, shaping, and processing materials
Buy Sealmaster item #RFP 315 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 3 15/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 9 3/8 in
- Series RFP
- Bolt Size 3/4 in
- Overall Height 10 7/8 in
- Overall Width 6 1/4 in
- Overall Length 10 7/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 20,980 lb
- Static Load Capacity 9,800 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 6 1/4 in
- Dimension B 10 7/8 in
- Dimension C 4 3/8 in
- Dimension D 8 1/8 in
- Dimension E 2 7/16 in
- Dimension F 2 11/16 in
- Dimension G 6 in
- Dimension H 3/32 in
- Dimension J 9 25/64 in
- Dimension L 6 1/4 in
- Dimension N 2 7/16 in
- Dimension P 8 1/8 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFP315
- MPN: RFP 315
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
