4 Bolt Flng Brg Taper Roll 1 1/2in Bore MPN:RFP 108
SKU
226-CXO-44A464

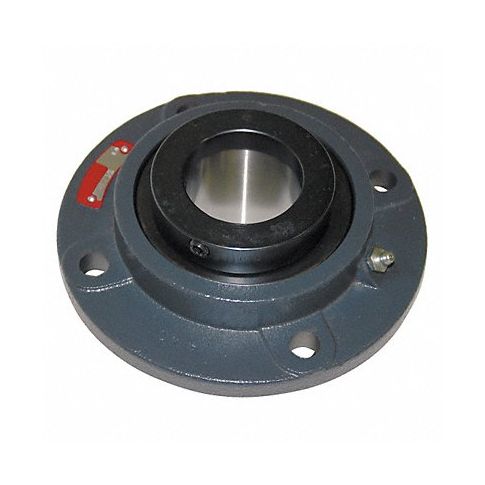

4 Bolt Flng Brg Taper Roll 1 1/2in Bore
Manufactured to industrial standards for precision and performance this 4 bolt flange bearing has a one-piece solid steel design constructed for maximum strength providing stable support for machinery; featuring an interchangeable tapered roller bearing with brass cage ideal for applications in need of smooth rotating movement at high temperatures, reducing friction and resistance when subjected to moderate loads - available in varying sizes to meet various shaft diameter requirements in automotive and heavy machinery industries.
Buy Sealmaster item #RFP 108 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 1 1/2 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series RFP
- Bolt Size 7/16 in
- Overall Height 6 1/8 in
- Overall Width 3 3/8 in
- Overall Length 6 1/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 6,140 lb
- Static Load Capacity 2,600 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 3 3/8 in
- Dimension B 6 1/8 in
- Dimension C 2 1/4 in
- Dimension D 4 1/4 in
- Dimension E 1 1/8 in
- Dimension F 1 9/16 in
- Dimension G 2 7/8 in
- Dimension H 1/2 in
- Dimension J 5 1/8 in
- Dimension L 2 7/8 in
- Dimension N 1 1/8 in
- Dimension P 4 1/4 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFP108
- MPN: RFP 108
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
