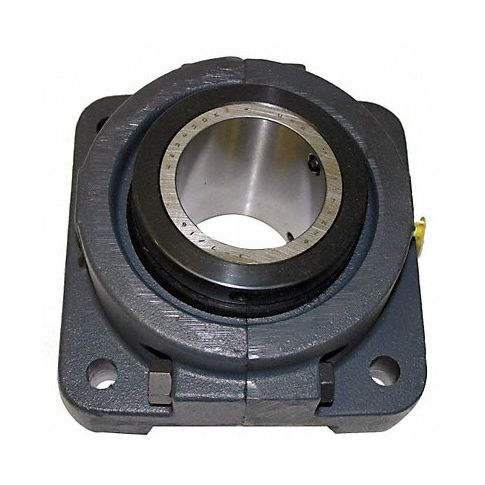

4 Bolt Flng Brg Taper Roll 2 3/16in Bore MPN:RFB 203
4 Bolt Flng Brg Taper Roll 2 3/16in Bore
4 Bolt Flange Bearing is a premium quality product designed for precision machining in various applications, providing stability during operation with its 4-bolt mounting system. Made from high-quality material, it ensures accurate alignment and superior performance in diverse industries such as automotive, aerospace, agriculture, and construction. This versatile tool offers easy installation and removal without damaging shafts or housing surfaces, making it suitable for professional users working with power tools and accessories. Overall, 4 Bolt Flange Bearing is an indispensable component in precision machining applications that require reliable performance.
Buy Sealmaster item #RFB 203 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Tapered Roller
- Bore Dia. 2 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 7/8 in
- Series RFB
- Bolt Size 5/8 in
- Overall Height 6 1/4 in
- Overall Width 3 7/8 in
- Overall Length 6 1/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 8,570 lb
- Static Load Capacity 2,980 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 3 7/8 in
- Dimension B 6 1/4 in
- Dimension BC 6 57/64 in
- Dimension C 3 1/4 in
- Dimension D 4 7/8 in
- Dimension E 1/8 in
- Dimension F 5/8 in
- Dimension G 1 3/8 in
- Dimension H 1 3/8 in
- Dimension J 5 1/4 in
- Dimension L 3 5/8 in
- Dimension M 5 1/4 in
- Dimension N 1 7/8 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: RFB203
- MPN: RFB 203
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
