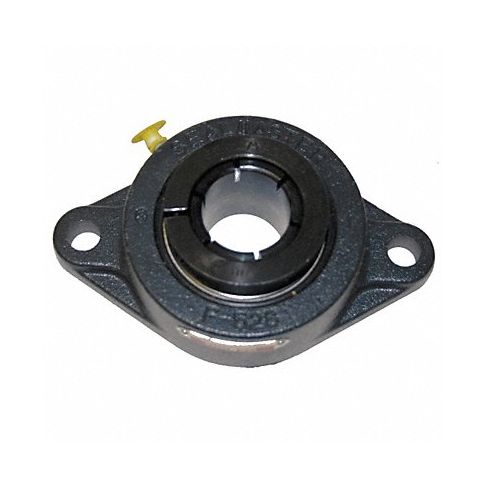

2 Bolt Flng Brg Radial 1 3/16in Bore MPN:MSFT-19
SKU
226-cxo-44a375
2 Bolt Flng Brg Radial 1 3/16in Bore
Sealmaster's MSFT-19 Two Bolt Flange Bearing is an ideal choice for applications requiring high radial loads and impact resistance. With a 1 3/16-inch bore diameter, this bearing ensures smooth rotation and reduced friction on shafts in diverse industries such as construction, agriculture, and transportation. Its locking set screw and ball bearing insert provide superior stability and reliability while minimizing wear and tear. Whether you're looking for an upgrade or a replacement, this bear
Top product features:
- Mounted Bearing Item This feature ensures easy and quick installation of the bearing on the shaft.
- Ball Bearing Insert This feature provides superior stability and smooth rotation, enhancing the performance and durability of the bearing.
- Locking Set Screw This feature locks the bearing in place, preventing it from spinning or loosening during use, ensuring optimal safety and reliability.
Top product applications:
- Heavy-duty machinery This bearing is designed to handle high radial loads and impacts, making it ideal for use in machines such as construction equipment or farm tractors.
- Industrial applications The durability and stability of the ball bearing insert make it suitable for applications where precision and performance are critical, such as in conveyor systems or industrial robots.
- Agriculture The locking set screw ensures the bearing remains firmly attached to the shaft, even under rough conditions, making it suitable for use on farm equipment such as grain augers or combine harvesters.
Buy Sealmaster item #MSFT-19 from our huge selection of Hardware Accessories to show your support for our 🗽 Patriotic Veteran-Owned Business.
Technical Specifications
- Item 2-Bolt Flange Bearing
- Mounted Bearing Item 2-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 1/8 in
- Series MSFT
- Bolt Size 1/2 in
- Overall Height 3 3/4 in
- Overall Width 1 3/4 in
- Overall Length 6 1/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 5,782 lb
- Static Load Capacity 3,493 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 6 1/8 in
- Dimension B 5 1/8 in
- Dimension C 9/16 in
- Dimension D 1 11/32 in
- Dimension E 1 3/4 in
- Dimension F 17/32 in
- Dimension G 9/16 in
- Dimension H 3 5/16 in
- Dimension J 3 3/4 in
- Dimension L 1 3/4 in
- Dimension M 1 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSFT19
- MPN: MSFT-19
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
