4 Bolt Flng Brg Radial Ball 4in Bore MPN:MSF-64
SKU
226-CXO-44A372
4 Bolt Flng Brg Radial Ball 4in Bore

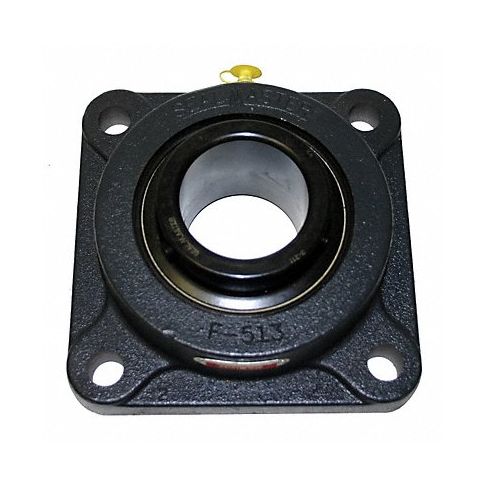

Introducing Sealmaster's MSF-64 4-Bolt Flange Bearing Radial Ball bearing with a 4 bore. This robust and reliable bearing is designed for use in a wide range of applications requiring precise movement and high performance. The 4-bolt flange allows for easy installation and removal, making it ideal for use in industrial machinery, agriculture equipment, and many other applications where precise motion is essential. The sealed radial ball bearing offers low-friction operation and helps to prevent the intrusion of dust or moisture, providing longer service life. With its heavy-duty construction, this 4-Bolt Flange Bearing Radial Ball from Sealmaster is an excellent choice for any application where precision and durability are required.
Top product features:
- Robust and reliable construction
- 4-bolt flange for easy installation and removal
- Low-friction operation with sealed radial ball bearing
Top product applications:
- Industrial machinery for high-precision movement and stability
- Agriculture equipment for efficient transfer of power and motion
- Robotics and automation for smooth and reliable movement in controlled environments
✓ Buy Sealmaster item #MSF-64 and get Free Shipping from our large selection of Hardware Accessories and show your support for Veteran-Owned Businesses.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 4 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 8 5/16 in
- Series MSF
- Bolt Size 1 in
- Overall Height 10 9/16 in
- Overall Width 5 in
- Overall Length 10 9/16 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 29,905 lb
- Static Load Capacity 23,553 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 10 9/16 in
- Dimension B 8 5/16 in
- Dimension C 1 1/4 in
- Dimension D 3 13/16 in
- Dimension E 5 in
- Dimension F 1 1/32 in
- Dimension G 1 3/16 in
- Dimension H 6 in
- Dimension J 9 1/4 in
- Dimension L 6 11/32 in
- Dimension M 2 11/16 in
- Dimension N 2 7/8 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSF64
- MPN: MSF-64
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
