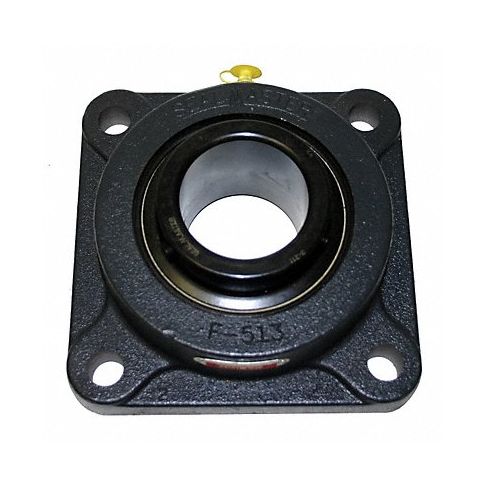

4 Bolt Flng Brg Radial 2 7/16in Bore MPN:MSF-39
Upgrade your industrial machinery and equipment with Sealmaster's premium 4-Bolt Flange Bearing. With a diameter of 2 7/16 inches and made from durable steel materials, this bearing offers superior performance and reliability in high-demand applications. Ideal for heavy-duty power transmission, these ball bearings are designed to withstand tough conditions and reduce friction between moving parts, resulting in reduced wear, longer life, and lower maintenance costs. The set screw locking mechanism ensures a secure fit that prevents loosening, while the easy installation makes it simple to upgrade your equipment without any downtime. Choose Sealmaster's 4-Bolt Flange Bearing for superior performance and reliability in your most demanding applications.
Top product features:
- Durable Steel Material: The bearing is made from durable steel materials that offer superior performance and reliability in high-demand applications.
- Ball Bearings: Designed to withstand tough conditions, these ball bearings reduce friction between moving parts, resulting in reduced wear and lower maintenance costs.
- Set Screw Locking Mechanism: The set screw locking mechanism ensures a secure fit that prevents loosening, making it easy to install and use without any downtime.
Top product applications:
- Industrial Machinery: The 4-Bolt Flange Bearing can be used in various industrial machinery such as crushers, shredders, conveyors, mixers and more.
- Agricultural Equipment: Farm equipment like grain augers, silage blowers, manure spreaders, and chippers may also use this bearing to ensure smooth operation.
- Mining Equipment: The bearing can be integrated into mining machinery such as drills, loaders, excavators, and haul trucks for reliable support of heavy loads.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 2 7/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 5 7/8 in
- Series MSF
- Bolt Size 5/8 in
- Overall Height 7 3/8 in
- Overall Width 3 in
- Overall Length 7 3/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 13,971 lb
- Static Load Capacity 10,063 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 7 3/8 in
- Dimension B 5 7/8 in
- Dimension C 13/16 in
- Dimension D 1 3/4 in
- Dimension E 3 in
- Dimension F 21/32 in
- Dimension G 11/16 in
- Dimension H 3 in
- Dimension J 6 1/8 in
- Dimension L 3 7/16 in
- Dimension M 1 11/16 in
- Dimension N 1 1/16 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSF39
- MPN: MSF-39
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
