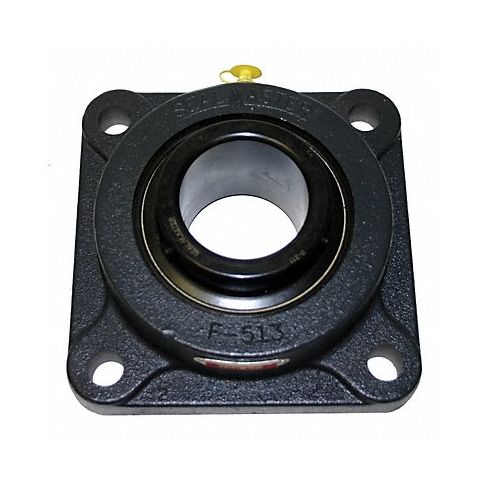

4 Bolt Flng Brg Radial 1 11/16in Bore MPN:MSF-27
4 Bolt Flng Brg Radial 1 11/16in Bore
4 Bolt Flng Brg Radial 1 11/16 bore is a versatile bearing that provides support for radial loading in various applications. Made from high-quality materials, it features four holes designed to accommodate bolts for secure mounting. This product is ideal for usage across multiple industries such as agriculture, construction machinery, and heavy equipment. By offering accurate guidance and prolonged wear resistance, customers can benefit from reduced friction and smoother movement. The compact size and durable structure make this 4-bolt flange bearing suitable for a range of uses that require strong support under varying load capacities.
⛟ Always get free shipping and support Veteran owned businesses by shopping our huge selection of Hardware Accessories including Sealmaster item #MSF-27.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 11/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 4 3/8 in
- Series MSF
- Bolt Size 9/16 in
- Overall Height 5 5/8 in
- Overall Width 2 5/32 in
- Overall Length 5 5/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 7,889 lb
- Static Load Capacity 5,216 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 5 5/8 in
- Dimension B 4 3/8 in
- Dimension C 9/16 in
- Dimension D 1 9/16 in
- Dimension E 2 5/32 in
- Dimension F 19/32 in
- Dimension G 19/32 in
- Dimension H 2 5/32 in
- Dimension J 4 9/16 in
- Dimension L 2 15/32 in
- Dimension M 1 9/32 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSF27
- MPN: MSF-27
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC
Category: Bearings
