4 Bolt Flng Brg Radial 1 3/16in Bore MPN:MSF-19
SKU
226-CXO-44A347

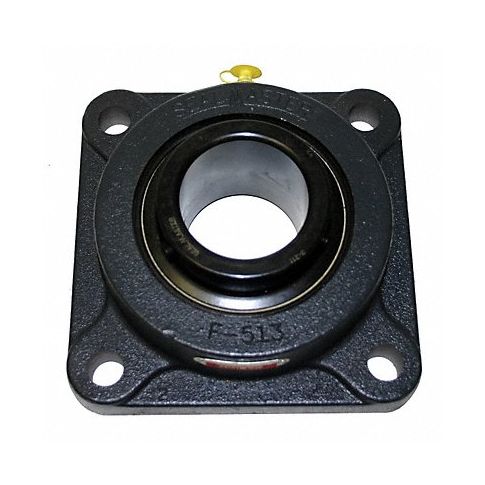

4 Bolt Flng Brg Radial 1 3/16in Bore
Designed to withstand demanding applications, the 4 Bolt Flange Mount Bearing provides a stable fitment for transmitting heavy loads between machine components; utilized in sectors such as mining, oil/gas or agriculture industries where reliable power transmission is critical. With its four-bolt fitting mechanism offering increased stability, this bearing offers reduced movement ensuring machines perform efficiently without compromising safety. This robust and sturdy flanged bearing not only boasts superior load distribution but also provides a simple installation process saving on maintenance time, hence ideal for busy industrial operations seeking durable bearings at cost-effective prices.
Buy Sealmaster item #MSF-19 from our huge selection of Hardware Accessories to show your support for our ♻ Socially Responsible Veteran-Owned Business.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 3/16 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 5/8 in
- Series MSF
- Bolt Size 1/2 in
- Overall Height 4 5/8 in
- Overall Width 1 3/4 in
- Overall Length 4 5/8 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 5,782 lb
- Static Load Capacity 3,493 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 5/8 in
- Dimension B 3 5/8 in
- Dimension C 9/16 in
- Dimension D 1 11/32 in
- Dimension E 1 3/4 in
- Dimension F 1 7/32 in
- Dimension G 13/32 in
- Dimension H 1 3/4 in
- Dimension J 3 23/32 in
- Dimension L 1 55/64 in
- Dimension M 1 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSF19
- MPN: MSF-19
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
