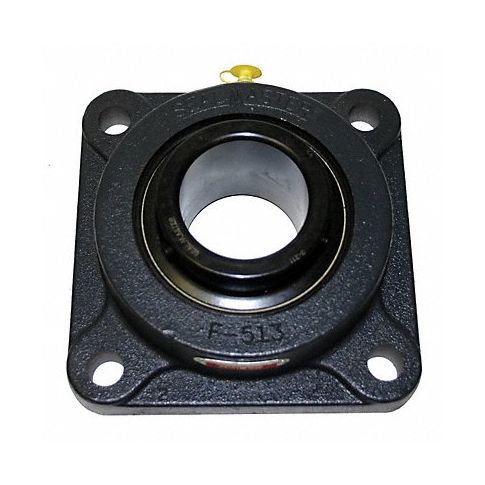

4 Bolt Flng Brg Radial Ball 1in Bore MPN:MSF-16
The Sealmaster MSF-16 Four-Bolt Flange Bearing is an essential component for various industries requiring precision and durability. With its sturdy construction and high load capacity, this mounted bearing provides superior performance in multiple applications. Featuring a bore diameter of 1 inch, the bearings suit shafts and pins with similar dimensions while offering minimum friction. The set-screw design secures the bearing in place without marring the shaft or the housing for maximum reliability. Engineered to deliver smooth, trouble-free operation, these bushings enhance equipment performance and longevity, making them an investment that pays off time and again. Ideal applications include robotics, CNC machinery, power transmission systems, and other precision motion control applications where high-quality bearings are a must. Buy from Sealmaster to help support service-disabled veteran-owned businesses and contribute to building a stronger community.
Top product features:
- Ball bearing insert for reduced friction and smooth operation
- 1 inch bore diameter fits standard shafts and pins
- Set screw design secures bearings without damaging the shaft or housing
Top product applications:
- Robotics systems for precise motion control and positioning
- CNC machinery for smooth operation and reduced friction
- Power transmission equipment for enhanced durability and performance
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 1 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Cast Iron
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 3 1/4 in
- Series MSF
- Bolt Size 7/16 in
- Overall Height 4 1/4 in
- Overall Width 1 9/16 in
- Overall Length 4 1/4 in
- Bearing Lubrication Sealmaster GoldPlex-HP or NLGI #2 Equivalent
- Dynamic Load Capacity 4,381 lb
- Static Load Capacity 2,567 lb
- Temp. Range -20 Degrees to 220 Degrees F
- Finish Black Oxide
- Dimension A 4 1/4 in
- Dimension B 3 1/4 in
- Dimension C 17/32 in
- Dimension D 1 11/64 in
- Dimension E 1 9/16 in
- Dimension F 15/32 in
- Dimension G 25/64 in
- Dimension H 1 9/16 in
- Dimension J 3 7/32 in
- Dimension L 1 19/32 in
- Dimension M 7/8 in
Manufacturer Details
- Manufacturer: Sealmaster
- Condensed Mfg Number: MSF16
- MPN: MSF-16
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:10pm UTC Category: Bearings
