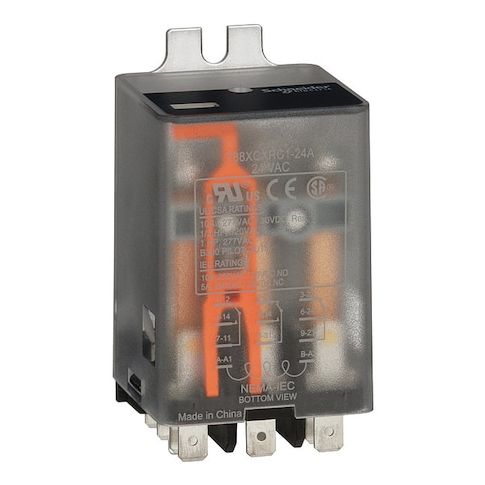

Relay, Side Flange, 3VA, 3PDT, 24VAC MPN:788XCXRC1-24A
Relay, Side Flange, 3VA, 3PDT, 24VAC
This 3VA, 3PDT side flange relay from Schneider is a reliable and versatile solution for a wide range of applications. With a 24VAC coil voltage and 10A current rating, it can handle high-power switching needs. Its 3PDT contact form allows for complex circuit configurations, making it ideal for use in industrial control systems, lighting control panels, and other high-reliability applications. The relay's compact size and enclosed sealing ensure durability and resistance to environmental factors, making it a great choice for use in harsh or outdoor conditions. Its mechanical flag status indicator provides visual confirmation of relay operation.
Top product features:
- Flange Mount design allows for easy installation and mounting options
- Contact Form 3PDT enables the relay to handle complex switching operations
- Mechanical Flag status indicator provides a clear visual indication of the relay's status
Top product applications:
- Industrial control systems for manufacturing facilities
- Automotive electrical systems for vehicle control panels
- Medical equipment control systems for life support devices
Flange Mount Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Blade Terminal, Flat Pin Width 0.189 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, 5 A @ 250V-1 (NC), Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Mounting Style Side Flange, Body Depth 1.9 in, Body Height 1.4 in, Body Width 1.38 in, Coil Resistance 72 ohm
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 2.60
- Package Height: 2.00
- Package Weight: 0.18
Product info last updated on February 2, 2026 7:12pm UTC
Category: Industrial Electrical Controls and Automation
