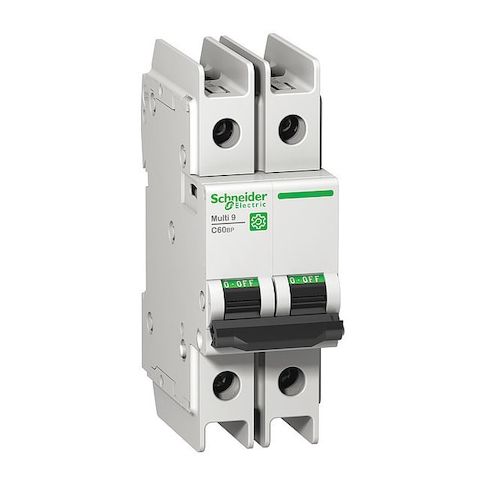

IEC Miniature Circuit Breaker, MULTI9 Series, 3A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, D Curve MPN:M9F43203
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G6522770
IEC Miniature Circuit Breaker, MULTI9 Series, 3A, 2 Pole, 240/415/440V AC, 14kA at 240V AC, D Curve
Protect your electrical circuits with the Schneider MULTI9 Series IEC Miniature Circuit Breaker. This 3A, 2-pole device offers reliable branch circuit protection for a wide range of applications, including commercial and industrial settings. With a maximum short-circuit current rating of 14kA at 240V AC, it provides robust protection against power surges and faults. The device features a thermal-magnetic trip mechanism and meets UL Type UL 489 standards. Its compact design and DIN rail mounting style make it easy to integrate into existing systems, while its screw clamp terminals ensure secure connections. Ideal for use in commercial and industrial settings, this circuit breaker offers peace of mind and reliable protection.
Top product features:
- Protects against overcurrent conditions with a 3A rating
- Provides 2-pole protection for branch circuit applications
- Features a D Curve characteristic for high inrush current protection
Top product applications:
- Branch Circuit Protection
- DIN Rail Mounting
- UL 489 Type
IEC Miniature Circuit Breaker, Amps 3 A, Number of Poles 2, Curve Type D, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 1, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 1.42 in, Depth 2.83 in, Frame Size 63A/C60BP
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 0.50
Product info last updated on February 14, 2026 5:03am UTC
Category: Circuit Protection
