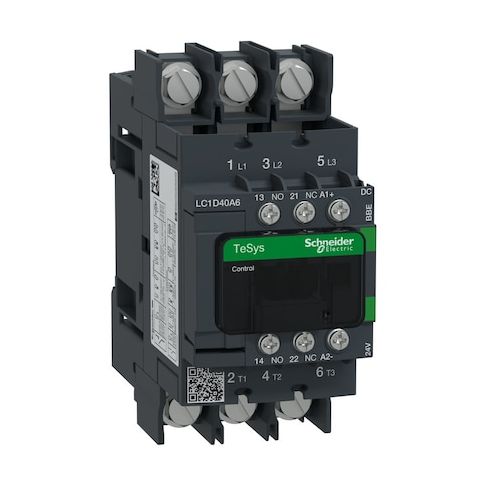

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw MPN:LC1D40A6BBE
Free Shipping
In Stock
The Schneider Electric IEC Magnetic Contactor is a reliable and efficient solution for controlling and switching electrical circuits in a wide range of applications, including industrial automation, HVAC systems, and power distribution. Its 24V DC coil and 3-pole design make it suitable for use in three-phase systems, while its non-reversing functionality ensures safe and consistent operation. The contactor's compact size and screw terminal connections make it easy to install and integrate into existing systems, providing a reliable and efficient solution for controlling electrical circuits in a variety of applications.
Top product features:
- The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil.
- It includes two auxiliary contacts configured as 1NC/1NO.
- It uses screw terminals for terminal connection.
Top product applications:
- Industrial Automation Systems
- Motor Control Centers
- Power Distribution Units
The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing device with a 24 V DC coil. It includes two auxiliary contacts configured as 1NC/1NO and uses screw terminals. Part of the TeSys Deca Green line, it is compatible with DIN Rail and Plate mounting options and is rated for operation within specified voltage ranges in three-phase systems with an IP20 enclosure.
Key features
- - Coil voltage: 24 V DC
- - Poles/Phase: 3 poles, Three-phase
- - Reversing capability: Non-Reversing
- - Auxiliary contacts: 2 total (1NC/1NO)
- - Terminal connection: Screw
- - Maximum voltage rating: 690 V AC
- - Frequency: 50 Hz
- - IP rating: IP20
- - Mounting style: DIN Rail, Plate
- - Series: TeSys Deca Green
- - Standards: CSA C22.2 No 60947-4-1
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- IEC 60335-1
- UL 60947-4-1
- - Mechanical durability: tested for a specified number of mechanical cycles (see product specifications)
- - Electrical durability (AC-3/AC-3e/AC-1): tested for electrical switching endurance within specified conditions
- - Full load amps: Inductive 150 A
- Resistive 200 A
- - Full load current: Inductive 40 A
- Resistive 200 A
- - Horsepower (HP): 3 hp @ 120 V
- 5 hp @ 240 V
- 10 hp @ 208 V
- 10 hp @ 240 V
- 30 hp @ 480 V
- 30 hp @ 600 V
- - Overall dimensions: Depth 4.72 in
- Height 4.8 in
- Width 2.17 in
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 2.50
- Package Weight: 2.18
