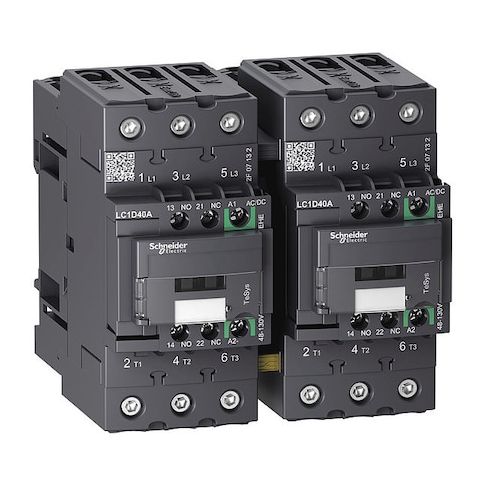

IEC Magnetic Contactor, 1NC/1NO, 48V-130V AC/DC, 3 P, Reversing, Screw Clamp MPN:LC2D40AEHE
The IEC Magnetic Contactor is a reliable and versatile device for motor control and resistive-load applications. It features a 3-pole reversing design with screw clamp terminals for control circuit connections and EverLink BTR connectors for power circuits. With a voltage range of 48-130V AC/DC, this contactor is suitable for a variety of applications, including industrial automation, HVAC, and renewable energy systems. Its compact design and protective cover make it easy to integrate into existing systems, while its high-quality construction ensures reliable performance and long lifespan. Ideal for use in harsh environments, this contactor is a valuable addition to any electrical system.
Top product features:
- 3-pole reversing device for switching power circuits in motor control and resistive-load applications
- Main contacts are normally open
- Screw clamp terminals are used for control circuit connections
Top product applications:
- Motor control applications
- Resistive-load applications
- Power circuits in general industrial automation
The IEC Magnetic Contactor is a 3-pole reversing device from the TeSys Deca series used to switch power circuits in motor control and resistive-load applications. It is rated for operation within the specified voltage ranges. Control circuit connections use screw clamp terminals, while the power circuit uses EverLink BTR connectors. It does not include an embedded surge suppressor and comes with a protective cover.
Key features
- - Poles/contacts: 3 poles
- main contacts 3 normally open
- auxiliary contacts 2 (1NO/1NC)
- - Reversing: Yes
- - Series/frame: TeSys Deca
- IEC style
- - Coil voltage: 48–130 V AC/DC
- hold and inrush VA: 1.4 VA (hold), 23 VA (inrush)
- - Rated voltage/frequency: 690 V AC
- 50/60 Hz
- - Protection and enclosure: IP20
- No Enclosure
- protective cover included
- no embedded surge suppressor
- - Electrical ratings: The electrical ratings are based on standard testing conditions applicable to typical load types. Actual performance may vary depending on application specifics.
- - Mechanical/physical: Height 4.8 in
- width 4.69 in
- depth 4.72 in
- net weight 2.154 kg
- - Connections: Control Circuit—Screw Clamp
- Power Circuit—EverLink BTR
- - Fire and standards: This product complies with certain safety standards but does not imply specific safety guarantees during operation. Additional specs: Impulse withstand voltage 6 kV
- mounting: DIN rail or plate
- Series: TeSys
- Reversing: Yes
Additional Information
- Country of Origin: FR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 53 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.35
- Package Width: 7.48
- Package Height: 6.30
- Package Weight: 4.63
