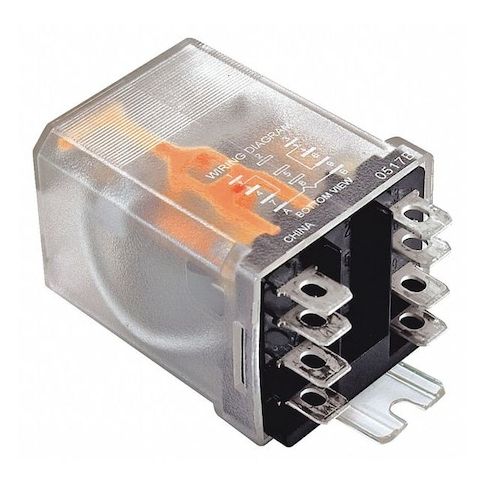

Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect MPN:389FXCXC1-24A
Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect
The Schneider Enclosed Power Relay is a versatile and reliable component ideal for a wide range of applications, including industrial control systems, HVAC, and power distribution. Its flange mount design allows for easy installation in confined spaces, while the enclosed construction provides protection from environmental factors. With a 20A current rating and 3PDT contact form, this relay can handle high-power loads and complex switching requirements. Suitable for use in commercial and industrial settings, it offers a fast and secure way to control and monitor electrical systems. Its compact size and quick-connect design make it a convenient choice for various applications.
Top product features:
- Enclosed design protects internal components from environmental factors
- Quick-Connect electrical connection provides fast and easy setup
- Three-pole double-throw (3PDT) contact form allows for complex control circuitry
Top product applications:
- Control Panel
- Industrial Automation
- Machine Control Systems
Enclosed Power Relay, Base Shape Octal, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 72 ohm, Contact Material Silver Alloy
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.21
