Open Power Relay 8 Pin 240VAC DPDT MPN:199AX-15
SKU
226-CXO-6CUT5

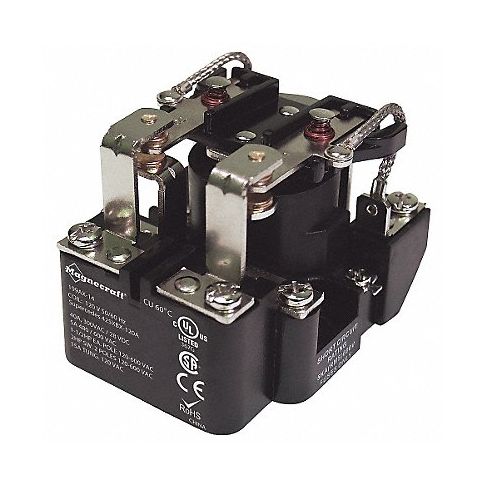

Open Power Relay 8 Pin 240VAC DPDT
The Open Power Relay 8 Pin 240VAC DPDT from Schneider is a high-quality electrical switch ideal for various industrial and commercial applications. This relay features a 240V AC coil voltage and can handle up to 40A at 300V or 40A at 28V DC, making it suitable for controlling high-current loads. The 8 pin design allows for versatile connections and operations while the DPDT (Double Pole Double Throw) configuration enables switching of two separate circuits. The relay's electrical specs include a maximum contact rating of 10A at 250VAC or 10A DC and an operating temperature range from -30 to +70 degrees Celsius. Built with quality materials, the Open Power Relay offers durability and reliability in your projects while supporting veterans 😇.
Technical Specifications
- Item - Relay Open Power Relay
- Coil Volts 240V AC
- AC Contact Rating - Relay 40A @ 300V
- DC Contact Rating - Relay
Top product features:
- Dual pole double throw (DPDT) configuration for switching two separate circuits
- Capable of handling high current loads with up to 40A at 300V or 40A at 28V DC
- Compatible with a wide range of applications in various industries due to its versatile connection and operation
Top product applications:
- Controlling high current loads in industrial or commercial settings
- Activating electrical circuits or systems in machines, appliances or equipment
- Providing a reliable and robust switching solution in various automation, control and protection systems
Get Schneider item #199AX-15 from our selection of Specialty Electrical Switches & Relays while supporting Veterans 🎖.
Technical Specifications
- Item - Relay Open Power Relay
- Coil Volts 240V AC
- AC Contact Rating - Relay 40A @ 300V
- DC Contact Rating - Relay 40A @ 28V
- Number of Pins - Relay 8
- Contact Form - Relay DPDT
- Mounting - Relay Surface
- Power Consumption - Relay 10.0 VA
- Contact Material Silver Alloy
- Electrical Connection - Power Relay Screw
- Body Height - Relay 2.31 in
- Body Width - Relay 2.5 in
- Body Depth - Relay 3.12 in
- Overall Height - Relay 2.31 in
- HP @ 120V 1-1/2
- HP @ 240V 1-1/2
- Hz - Electrical 50/60 Hz
- Features Riveted Construction
- Standards cULus/cURus/CSA/CE
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 199AX15
- MPN: 199AX-15
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490075
- GDS Category Name: Power Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Power relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
