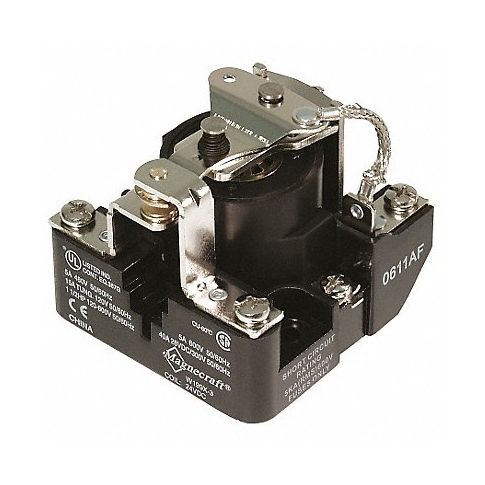

Open Power Relay 8 Pin 24VAC DPDT MPN:199AX-13

Technical Specifications

• Item - Relay Open Power Relay
• Coil Volts 24V AC
• AC Contact Rating - Relay 40A @ 300V
• DC Contact Rating - Relay 40A @ 28V
• Number of Pins - Relay 8
• Contact Form - Relay DPDT
• Mounting - Relay Surface
• Power Consumption - Relay 10.0 VA
• Contact Material Silver Alloy
• Electrical Connection - Power Relay Screw
• Body Height - Relay 2.31 in
• Body Width - Relay 2.5 in
• Body Depth - Relay 3.12 in
• Overall Height - Relay 2.31 in
• HP @ 120V 1-1/2
• HP @ 240V 1-1/2
• Hz - Electrical 50/60 Hz
• Features Riveted Construction
• Standards cULus/cURus/CSA/CE

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 199AX13
• MPN: 199AX-13

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536410050
• GDS Category Name: Power Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
