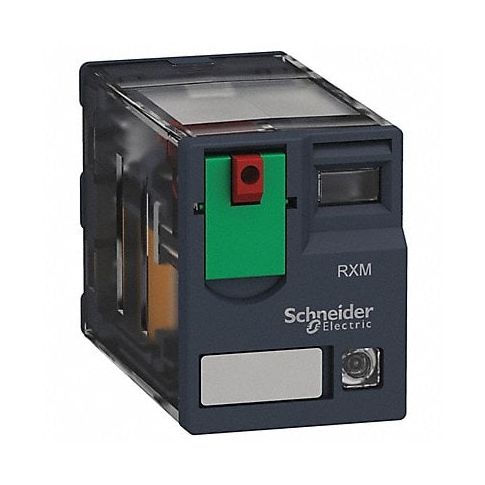

Plug In Relay 14 Pins Square Base MPN:RXM4AB2E7
Plug In Relay 14 Pins Square Base
Upgrade your electrical system with the Plug In Relay 14 Pins Square Base from Schneider! With a powerful coil voltage of 48V AC and an impressive rating of 3A @ 250V, 6A @ 250/277V for AC contact and 3A @ 28V, 6A @ 28V, 8A @ 30V for DC contact, this relay is perfect for any electrical installation. Its square base makes it easy to plug in and its versatile applications make it suitable for a wide range of projects. Reduce downtime and improve safety with the reliability and efficiency of the Plug In Relay 14 Pins Square Base from Schneider!
Top product features:
- Square base for easy plug in
- AC and DC contact rating of 3A @ 250V, 6A @ 250/277V and 3A @ 28V, 6A @ 28V, 8A @ 30V
- Powerful coil voltage of 48V AC
Top product applications:
- Lighting control systems in commercial and industrial spaces
- Machine protection and automation in factories and assembly lines
- Timers and relays in HVAC systems for heating and cooling control
Buy Schneider item #RXM4AB2E7 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item - Relay Plug In Relay
- Coil Volts 48V AC
- AC Contact Rating - Relay 3A @ 250V, 6A @ 250/277V
- DC Contact Rating - Relay 3A @ 28V, 6A @ 28V, 8A @ 30V
- Base Type - Plug In Relay Square
- Number of Pins - Relay 14
- Contact Form - Relay 4PDT
- Mounting - Relay Plug In
- Socket Code - Relay F
- Power Consumption - Relay 1.2 VA
- Contact Material Silver Nickel
- Status Indicator LED
- Push To Test Lockable
- Body Height - Relay 1.06 in
- Body Width - Relay 0.82 in
- Body Depth - Relay 1.57 in
- Overall Height - Relay 1.06 in
- Features IP Degree of Protection: IP40; Mercury Free: Yes, Toxic Heavy Metal Free: Yes
- Standards CSA C22.2 No 14, EN/IEC 61810-1, UL 508
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: RXM4AB2E7
- MPN: RXM4AB2E7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8536410050
- GDS Category Name: Plug-In Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121515
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 15
- UNSPSC Commodity Name: General purpose relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 6:54pm UTC
