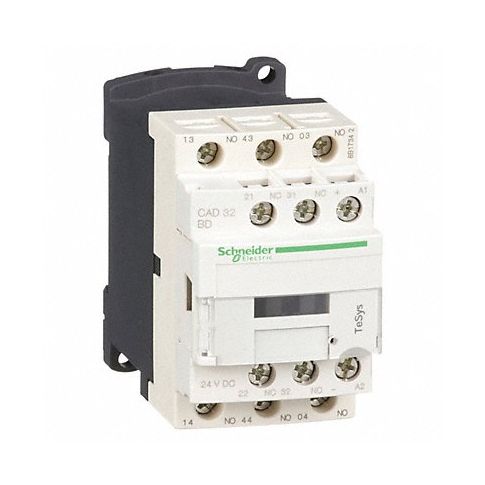

H2714 IEC Control Relay 3NO/2NC 24VDC 10A MPN:CAD32BD
Free Shipping
In Stock
Control relays are essential in electrical systems for controlling power to devices such as motors, lights, and other equipment. Schneider Electric's H2714 IEC Control Relay is a premium quality relay designed for use with AC and DC voltages. With a 3NO/2NC configuration, this relay offers versatile switching capabilities in various applications. The 10A contact rating can handle moderate load currents, making it suitable for many lighting and motor control applications. It features 12 pins for easy wiring and compatibility with a range of devices. The Schneider Electric H2714 IEC Control Relay offers high reliability and performance at an affordable price, making it the perfect choice for various industries such as manufacturing, construction, and facilities management.
Top product features:
- Versatile switching capabilities
- High load currents handling
- Wide voltage range compatibility
Top product applications:
- Lighting control systems for commercial and residential buildings
- Motor speed control in manufacturing processes
- Load shedding and power management in industrial facilities
Technical Specifications
- Item - Relay IEC Style Control Relay
- Coil Volts 24V DC
- AC Contact Rating - Relay 10A @ 120/240/480/600V
- DC Contact Rating - Relay 2.00A @ 125/250/600V
- Number of Pins - Relay 12
- Contact Form - Relay (2) SPST-NC, (3) SPST-NO
- Mounting - Relay DIN Rail, Surface
- Power Consumption - Relay 3.0 VA
- Body Height - Relay 2.91 in
- Body Width - Relay 1.77 in
- Body Depth - Relay 4.53 in
- Overall Height - Relay 3.03 in
- Response Time Drop Out: 8 msec, Pick Up: 16 msec
- Contact Material Silver Nickel
- Features 3.03 in H x 1.77 in W x 3.66 in D
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: CAD32BD
- MPN: CAD32BD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109170
- GDS Category Name: IEC and NEMA Style Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121535
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 35
- UNSPSC Commodity Name: Control relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
