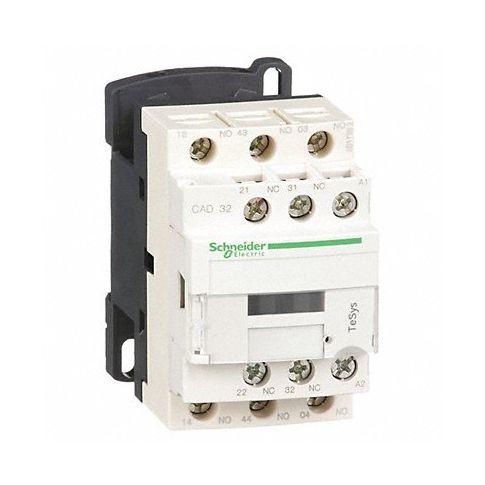

H2714 IEC Control Relay 3NO/2NC 120VAC 10A MPN:CAD32G7
Free Shipping
In Stock
Schneider's IEC Style Control Relay is a versatile and efficient solution for your power management needs. With a rating of 120V AC for the coil voltage, this relay is designed to provide reliable performance in various applications. The AC contact rating of 10A @ 120/240/480/600V ensures that it can handle heavy loads, while the DC contact rating of 2.00A @ 125/250/600V provides added versatility for specialized applications. The relay's compact size and lightweight design make it easy to integrate into any system, and its 12 pins provide flexible configuration options for customization. Whether you're looking to control lighting systems, regulate motor speed, or manage other electrical processes, the IEC Style Control Relay from Schneider is an excellent choice for the job.
Top product features:
- Compact size and lightweight design for easy integration into any system
- 12 pins provide flexible configuration options for customization
- Coil voltage rating of 120V AC for reliable performance
Top product applications:
- Lighting control in industrial and commercial settings
- Motor speed regulation in factory automation processes
- Load shedding and power management systems in residential or office environments
Technical Specifications
- Item - Relay IEC Style Control Relay
- Coil Volts 120V AC
- AC Contact Rating - Relay 10A @ 120/240/480/600V
- DC Contact Rating - Relay 2.00A @ 125/250/600V
- Number of Pins - Relay 12
- Contact Form - Relay (2) SPST-NC, (3) SPST-NO
- Mounting - Relay DIN Rail, Surface
- Power Consumption - Relay 3.0 VA
- Body Height - Relay 2.91 in
- Body Width - Relay 1.77 in
- Body Depth - Relay 3.15 in
- Overall Height - Relay 3.03 in
- Hz - Electrical 50 Hz, 60 Hz
- Response Time Drop Out: 8 msec, Pick Up: 16 msec
- Contact Material Silver Nickel
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: CAD32G7
- MPN: CAD32G7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ID
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109060
- GDS Category Name: IEC and NEMA Style Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121535
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 35
- UNSPSC Commodity Name: Control relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
