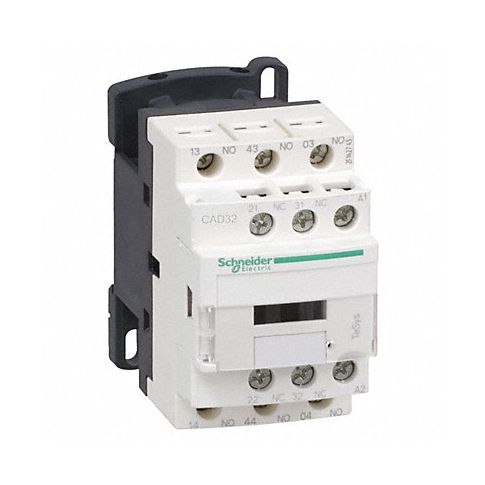

H2714 IEC Control Relay3NO/2NC240VAC10A MPN:CAD32U7

Technical Specifications

• Item - Relay IEC Style Control Relay
• Coil Volts 240V AC
• AC Contact Rating - Relay 10A @ 120/240/480/600V
• DC Contact Rating - Relay 2.00A @ 125/250/600V
• Number of Pins - Relay 12
• Contact Form - Relay (2) SPST-NC, (3) SPST-NO
• Mounting - Relay DIN Rail, Surface
• Power Consumption - Relay 8.0 VA
• Body Height - Relay 3.03 in
• Body Width - Relay 1.77 in
• Body Depth - Relay 3.31 in
• Overall Height - Relay 3.03 in
• Hz - Electrical 50 Hz, 60 Hz
• Response Time Drop Out: 17 msec, Pick Up: 19 msec
• Contact Material Silver Nickel
• Standards CE, CSA, UL

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: CAD32U7
• MPN: CAD32U7

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ID
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8537109060
• GDS Category Name: IEC and NEMA Style Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
