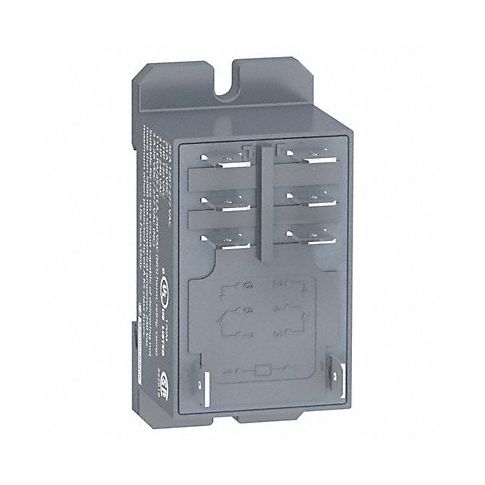

H8135 Enclosed Power Relay 8 Pin 24VDC DPDT MPN:RPF2BBD

Technical Specifications

• Item - Relay Enclosed Power Relay
• Coil Volts 24V DC
• AC Contact Rating - Relay 30A @ 277V (NO), 3A @ 277V (NC)
• DC Contact Rating - Relay 20A @ 28V
• Number of Pins - Relay 8
• Contact Form - Relay DPDT
• Mounting - Relay Bottom Flange, DIN Rail
• Power Consumption - Relay 4.0 W
• Contact Material Silver Tin Oxide
• Electrical Connection - Power Relay 1/4 in Tab Terminal
• Body Height - Relay 1.65 in
• Body Width - Relay 1.34 in
• Body Depth - Relay 2.68 in
• Overall Height - Relay 1.54 in
• HP @ 120V 1
• HP @ 240V 3
• Hz - Electrical 50/60 Hz
• Features Sealed Construction
• Standards CCN, CE, CSA, cULus, UL

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: RPF2BBD
• MPN: RPF2BBD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: Power Relays
• GDS Family Name: Relays
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
