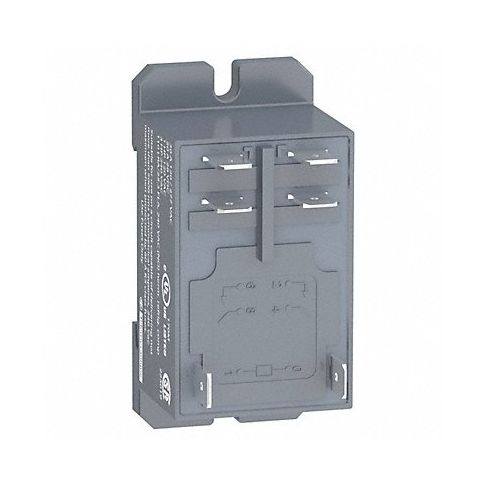

H8138 Enclosed Power Relay 6Pin 230VAC DPST-NO MPN:RPF2AP7
Free Shipping
In Stock
Introducing H8138 Enclosed Power Relay 6Pin 230VAC DPST-NO from Schneider - a reliable and durable solution for your industrial automation needs. With its top-mounted 1/4 quick-connect terminals, this relay ensures easy installation and wiring in tight spaces. The flange-type mounting bracket provides stable and secure attachment to DIN rails, making it ideal for use in electrical panels or control cabinets. Featuring a voltage rating of 230V AC, the relay can handle up to 30A at 277V DC or 20A at 28V DC, making it suitable for handling heavy loads and power applications. With its 6 pins, this enclosed power relay offers versatility in controlling both normally open and normally closed circuits, making it suitable for a wide range of applications such as security systems, machinery control, and lighting controls. Upgrade your industrial automation setup with the H8138 Enclosed Power Relay 6Pin 230VAC DPST-NO from Schneider, and enjoy its reliable performance and durability.
Top product features:
- Flange-type mounting bracket for stable and secure attachment to DIN rails.
- Top-mounted 1/4 quick-connect terminals for easy installation and wiring in tight spaces.
- Enclosed design for added protection and durability against harsh industrial environments.
Top product applications:
- Industrial automation systems for controlling power distribution in electrical circuits.
- Security systems to monitor and control access points or alarms.
- Lighting controls to manage and regulate lighting in commercial buildings or outdoor spaces.
Technical Specifications
- Item - Relay Enclosed Power Relay
- Coil Volts 230V AC
- AC Contact Rating - Relay 30A @ 277V
- DC Contact Rating - Relay 20A @ 28V
- Number of Pins - Relay 6
- Contact Form - Relay DPST-NO
- Mounting - Relay Bottom Flange, DIN Rail
- Power Consumption - Relay 4.0 VA
- Contact Material Silver Tin Oxide
- Electrical Connection - Power Relay 1/4 in Tab Terminal
- Body Height - Relay 1.65 in
- Body Width - Relay 1.34 in
- Body Depth - Relay 2.68 in
- Overall Height - Relay 1.54 in
- HP @ 120V 1
- HP @ 240V 3
- Hz - Electrical 50/60 Hz
- Features Sealed Construction
- Standards CCN, CE, CSA, cULus, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: RPF2AP7
- MPN: RPF2AP7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Power Relays
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121514
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Power relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
