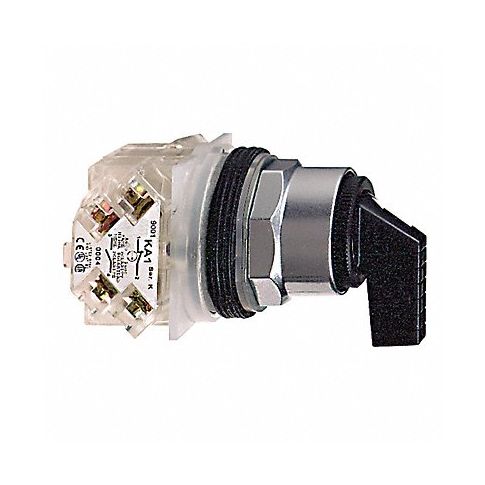

Non-Illum Switch 2NO/2NC Ext Lvr 3P Blk MPN:9001KS53FBH2

This non-illuminated selector switch is engineered to protect against the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings. It also offers protection against the ingress of water from dripping, splashing, hosedown, and occasional temporary submersion. The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure. Use in energy distribution panels for public works, construction, and airports.

Technical Specifications

• Item Non-Illuminated Selector Switch
• Size 30 mm
• Position 3
• Action Momentary / Maintained / Momentary
• Contact Form 2NO/2NC
• Type of Operator Extended Lever
• Color Black
• Key Removal No Key
• Operator Head Material Polycarbonate
• Basic Material Metal
• Bezel Material Zinc Die Cast
• Bezel Color Chrome
• Contact Rating 10A @ 600V AC
• NEMA Contact Rating Designation A600/Q600
• NEMA Rating 12, 13, 3, 3R, 4
• IP Rating 65
• Cam C
• Switch Operation @ Position A OXOX
• Switch Operation @ Position B OOOO
• Switch Operation @ Position C XOXO
• Switch Operation @ Position D No Fourth Position
• Standards CE Marked, CSA Certified File Number LR24590 Class 3211-03, UL Listed File Number E78403 CCN NKCR

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: 9001KS53FBH2
• MPN: 9001KS53FBH2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: MX
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536509025
• GDS Category Name: Non-Illuminated Selector Switches with Contact Blo
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 39121513
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 13
• UNSPSC Commodity Name: Rotary switches
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
