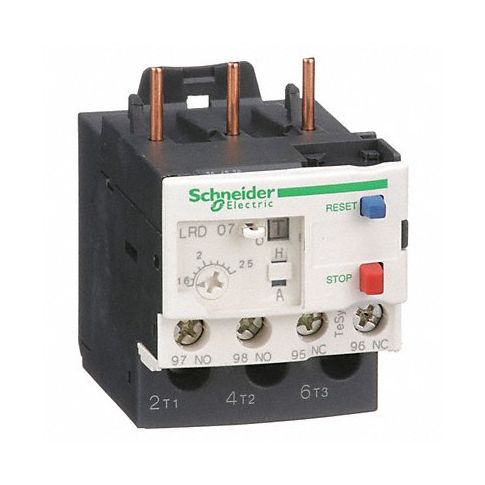

Overload Relay 1.60 to 2.50A 3P Class 10 MPN:LRD07
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-3EA43
Overload Relay 1.60 to 2.50A 3P Class 10
The Schneider TeSys IEC Overload Relay is the perfect solution for industrial motor control applications. This overload relay combines with a contactor to create a complete motor starter, ideal for demanding environments. With its adjustable current range and ambient compensated design, this relay ensures optimal performance in any setting. Its bimetallic elements provide Class 10 trip characteristics with 1-phase sensitivity, making it the perfect choice for 3-phase applications. Additional features like lockability, sealability, manual/auto reset, and test trip functionality make this an essential component for any industrial motor control system. Invest in the Schneider TeSys IEC Overload Relay and experience the benefits of improved safety, efficiency, and reliability in your next project.
Top product features:
- Overload Relay Current Range: Adjustable current range allows for customized settings to suit specific motor loads and applications.
- Ambient Compensated: The relay's performance is optimized in varying environmental conditions for consistent and reliable operation.
- Lockable, Sealable, Manual/Auto Reset, Test Trip: These features enhance safety, simplify troubleshooting, and enable easier maintenance of the motor starter system.
Top product applications:
- Industrial Motor Control: This product is ideal for controlling motors in manufacturing, mining, oil and gas, and other heavy-duty industries. It provides precise and reliable control over motor speed and torque to maximize efficiency and minimize downtime.
- HVAC Systems: The product can be used to regulate the flow of air in heating, ventilation, and air conditioning (HVAC) systems, ensuring optimal comfort and energy savings in residential and commercial buildings. Its compact design allows for easy installation in control panels or DIN rail systems.
- Water Pump Control: The product is perfect for controlling water pumps in irrigation, agriculture, and municipal water supply systems. It ensures consistent flow rates to maximize crop yield, optimize water distribution, and maintain proper pressure in pipelines.
TeSys™ IEC Contactors and Overload RelaysFor industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail• or panel-mount.UL Listed, CSA and CE Certified.Overload RelaysFor 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.
Technical Specifications
- Item - Relay IEC Style Overload Relay
- Use With - Contactors and Starters Mfr. Series LC1D09 to LC1D32 Contactors
- Overload Relay Current Range 1.60 to 2.50A
- Trip Class - Overload 10
- Number of Poles 3
- Reset Type - Relay Manual
- Body Height - Relay 3.62 in
- Body Width - Relay 1.77 in
- Body Depth - Relay 2.75 in
- Overall Height - Relay 3.62 in
- Sensing Method Bimetallic
- Features Single Phase Sensitivity, Differential
- Standards ATEX D 94/9/CE, CSA, GOST, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: LRD07
- MPN: LRD07
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: FR
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536410030
- GDS Category Name: IEC Overload Relays
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:18pm UTC
Category: Starters and Contactors
